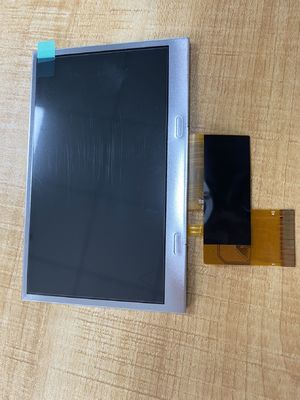

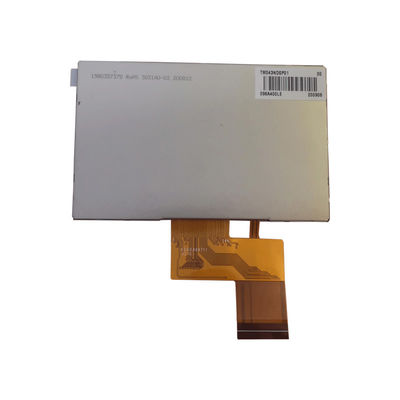

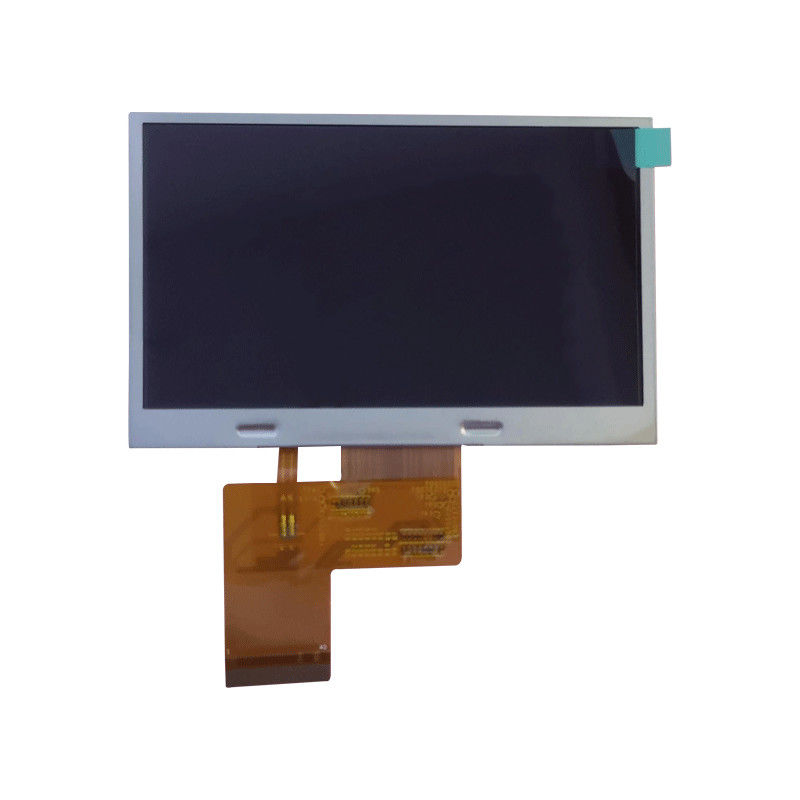

Product Details:
|
MODEL NUMBER: | TM043NDSP01 | BRAND: | TIANMA |
---|---|---|---|
SIZE: | 4.3inch | RESOLUTION: | 480(RGB)×272 (WQVGA) 128PPI |
BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
Basic Information : | Brand Name | Model Name | Type | Model Alias |
---|---|---|---|---|
TM043NDSP01 | a-Si TFT-LCD , LCM | - | ||
Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
-20 ~ 70 °C | -30 ~ 80 °C |
Screen Size : | 4.3" | |||
---|---|---|---|---|
Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
480(RGB)×272, WQVGA | RGB Vertical Stripe | 0.066×0.198 mm | 0.198×0.198 mm [128PPI] | |
Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
95.04×53.856 mm | 99.6×56.7 mm | 105.5×67.2 mm | 2.9±0.3 mm | |
Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
Flat Rectangle | 16:9 | Landscape type | ||
Other Spec : | Mass | Panel Cover | Surface Treatment | |
44.4g (Typ.) |
Basic Information : | Luminance | Work Mode | Contrast Ratio |
---|---|---|---|
400 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
Good View at | Viewing Angle | Response Time | |
Symmetry | 80/80/80/80 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) | |
Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
7161K | 16.7M (8-bit) | X:0.303; Y:0.320 | |
1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
52% | 73% | 55% | |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) |
Reverse Scan : | No |
---|---|
Driver IC List: | COG Built-in ILI6485 |
Time Controller (T-CON) : | Embedded T-CON |
Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
---|---|---|---|---|---|---|
WLED | Edge light type | 30K(Typ.) | 5S2P | Array | - | |
WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
15/16/18V (Min./Typ./Max.) | 40/50mA (Typ./Max.) | 640mW (Typ.) | ||||
Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
No | Included in signal interface |
