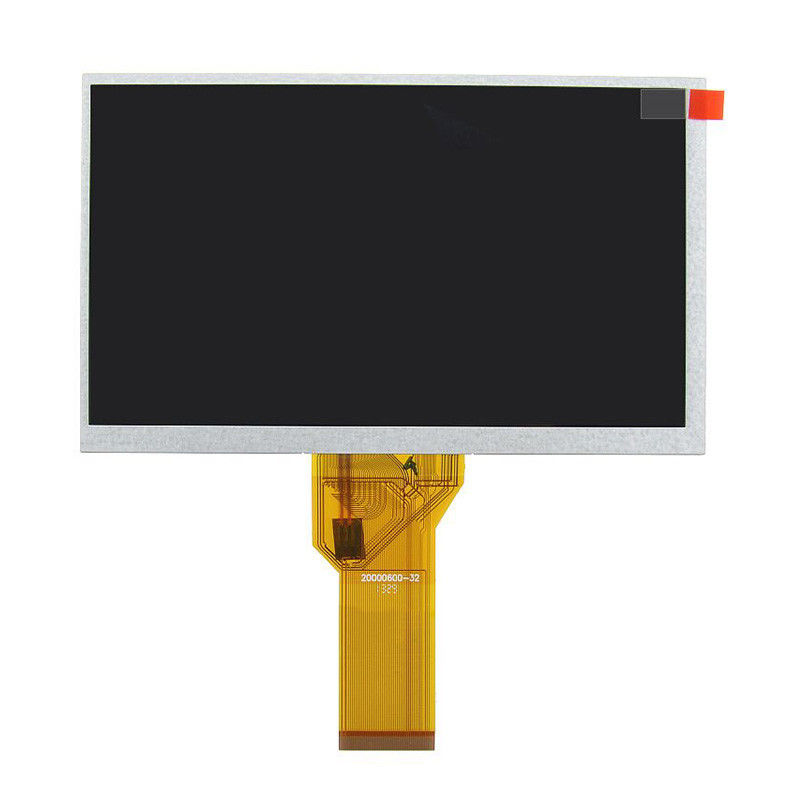

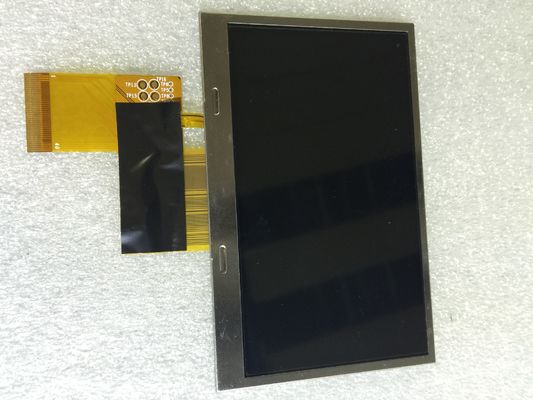

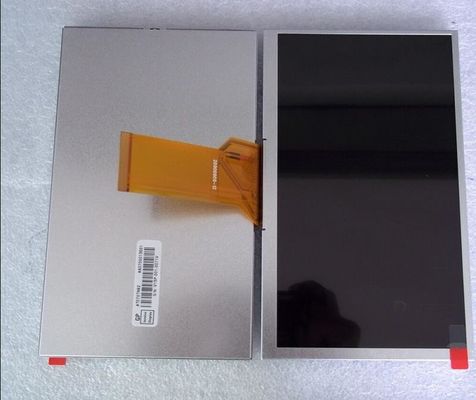

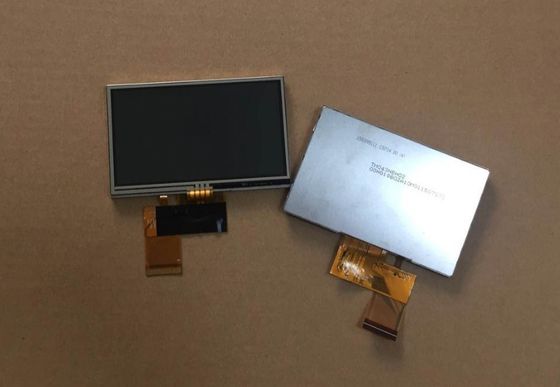

Product Details:
|
| MODEL NUMBER: | TM043NDH03 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 4.3 Inch | RESOLUTION: | 480(RGB)×272 [WQVGA] 128PPI |
| BRIGHTNESS: | 450 Cd/m² (Typ.) | Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) | ||
| Highlight: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | TM043NDH03 | |
|---|---|---|---|---|
| Diagonal Size | 4.3" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | Vibration Rating | - | ||
| Specific Features : |
|
|||
| Remarks : | 3 in 1 FPC | |||
| Pixel Features : | Pixel Format | 480(RGB)×272 [WQVGA] | Dot Pitch | 0.066×0.198 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.198×0.198 mm (H×V) [128PPI] | |
| Mechanical Size : | Display Area | 95.04×53.856 mm (H×V) | Bezel Area | 99.6×56.7 mm (H×V) |
| Outline Dim. | 105.5×67.2 mm (H×V) | Outline Depth | 2.9 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 43.7±2.2g | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 9 o'clock | Response Time | 20 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.316 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 7092K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| D-IC Detail : | COG Built-in HX8257A |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 20K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 10S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 32V (Typ.) | Current Input | 20/25mA (Typ./Max.) | ||
| Consumption | 640mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - | ||
| Consumption | 68/92mW (Typ./Max.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 40 pins | 1 pcs | ||||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 112 pcs / box | 8.13±0.4 Kgs | 530×350×250 mm |
