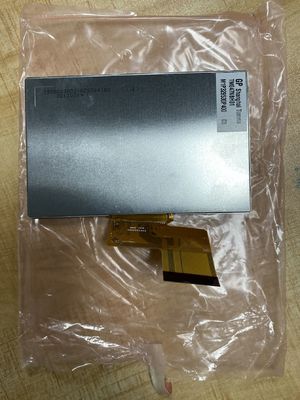

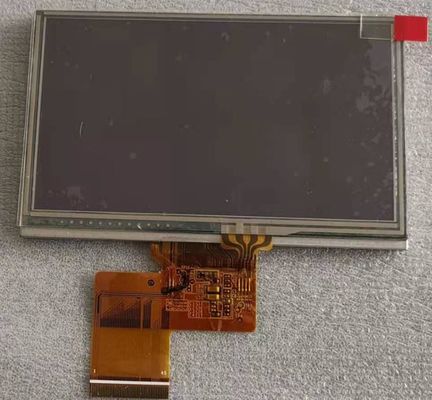

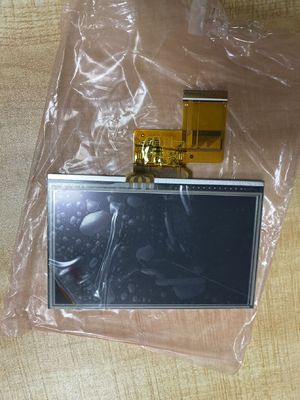

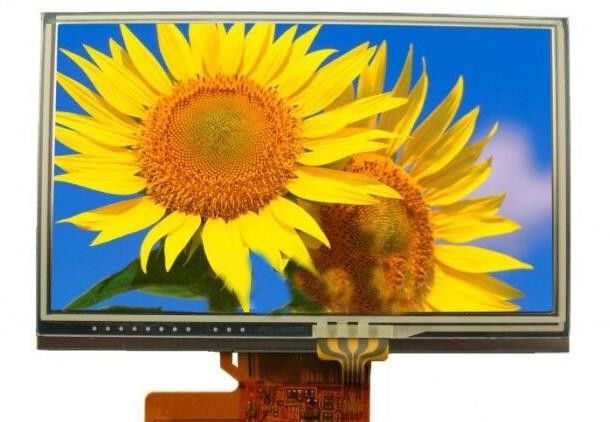

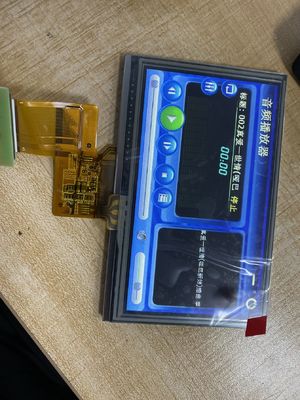

Product Details:
|
| MODEL NUMBER: | TM047NBH01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 4.7INCH | RESOLUTION: | 480(RGB)×272 [WQVGA] 117PPI |
| BRIGHTNESS: | 280 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | TM047NBH01 1 Compatible | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | TS047NAARB01-00 | |
| Panel Size | 4.7 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -20 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
| Vibration Level | - | RoHS | ||
| Features : |
|
|||
| Remarks : | 3 in 1 FPC; Down side FPC | |||
| Basic Information : | Luminance | 280 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 480(RGB)×272 [WQVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.072×0.216 mm | Pixel Pitch(W×H) | 0.216×0.216 mm [117PPI] | |
| Physical Size : | Active Viewing | 103.68(W)×58.752(H) mm | Overall Dim. | 114.3(W)×72.5(H) mm |
| Bezel Opening | - | Overall Depth | 5.0 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Touchscreen : | TP Controller | Without touch controller | TP Interface | - |
| Touch Points | 1 point | TP Technology | 4-wire Resistive Touch | |
| Other Detail : | Mass | 76.5g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 85/90mW (Typ./Max.) | Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI | |||
| Logic Voltage for Signals : | -0.3V≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 45 pins | ||||
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 5S2P | Life | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 40/50mA (Typ./Max.) | Input Voltage | 16V (Typ.) | ||
| Consumption | 640mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 112 pcs / box | 530×350×250 mm | 11.5 Kgs |
