Product Details:
|

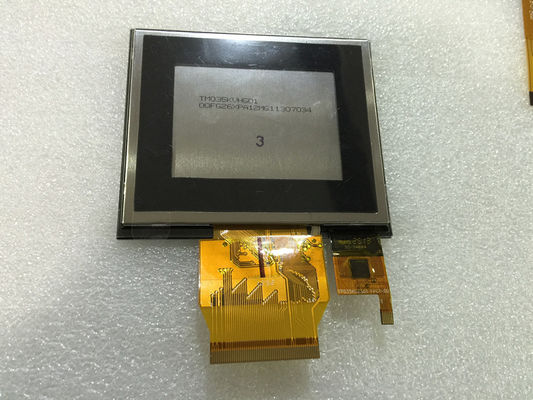

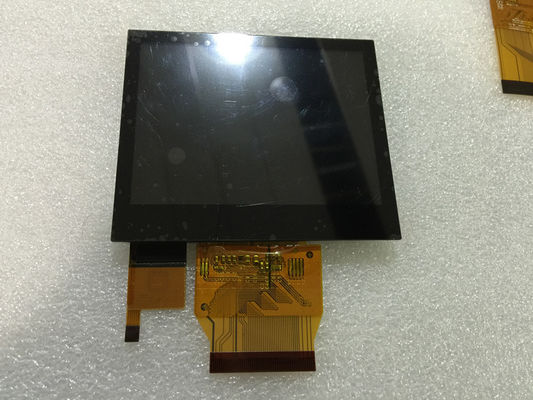

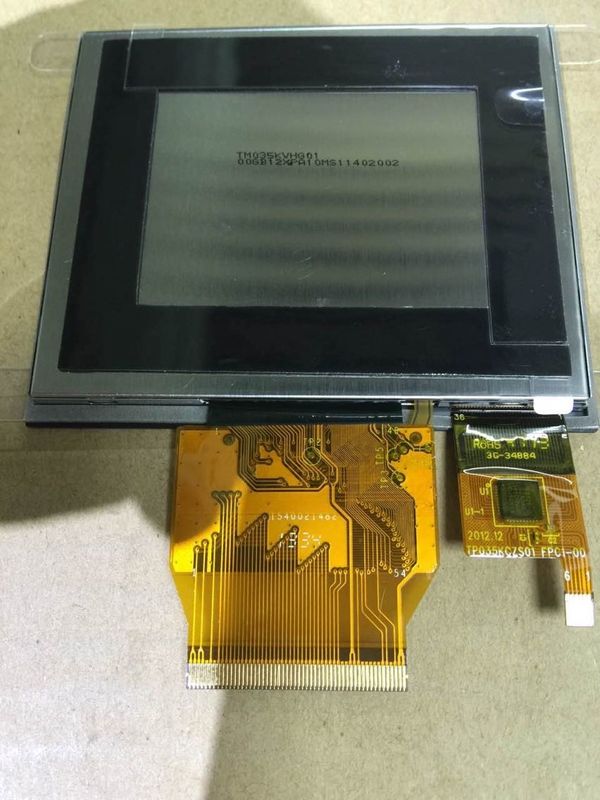

| MODEL NUMBER: | TM035KVHG01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.5"inch | RESOLUTION: | 320(RGB)×240, QVGA, 115PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | TM035KVHG01 | |
|---|---|---|---|---|
| Diagonal Size | 3.5" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - | ||
| Specific Features : |
|
|||
| Remarks : | CTP: HX8526 | |||
| Pixel Features : | Pixel Format | 320(RGB)×240 [QVGA] | Dot Pitch | 0.073×0.219 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.219×0.219 mm (H×V) [115PPI] | |
| Mechanical Size : | Display Area | 70.08×52.56 mm (H×V) | Bezel Area | - |
| Outline Dim. | 79.9×68.9 mm (H×V) | Outline Depth | 4.38±0.35 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | 5 points | TP Signal | I²C |
| TP Controller | With touch controller | Touchscreen | PCAP | |
| Other Features : | Weight | - | Surface | Anti Fingerprint, Hard coating (4H) |
| Panel Cover | With Cover Lens | |||
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 20 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.280; Wy:0.310 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 9085K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 75% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 56% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| D-IC Detail : | Built-in NV3035C |
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 19.2±2.4V | Current Input | 20/25mA (Typ./Max.) | ||
| Consumption | 384mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | Digital RGB (8/24-bit) + SPI, CCIR601/656 | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - | ||
| Consumption | 45/65mW (Typ./Max.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 54 pins | 1 pcs | ||||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 216 pcs / box | - | 544×365×250 mm |
