TM028HDZG59 TIANMA 2.8" 240(RGB)×320 300 cd/m² INDUSTRIAL LCD DISPLAY

TM028HDZG59 TIANMA 2.8" 240(RGB)×320 300 cd/m² INDUSTRIAL LCD DISPLAY
TM028HDZG59 TIANMA 2.8" 240(RGB)×320 300 cd/m² INDUSTRIAL LCD DISPLAY TM028HDZG59 TIANMA 2.8" 240(RGB)×320 300 cd/m² INDUSTRIAL LCD DISPLAY TM028HDZG59 TIANMA 2.8" 240(RGB)×320 300 cd/m² INDUSTRIAL LCD DISPLAY

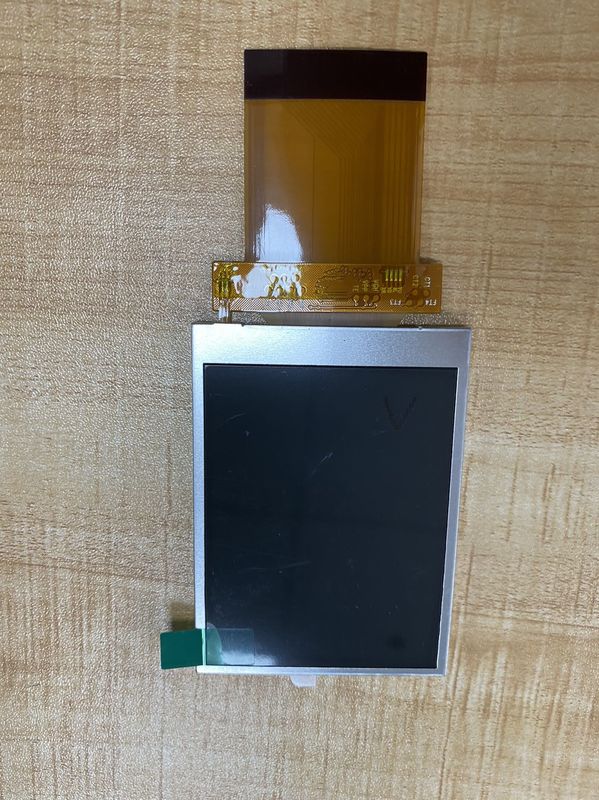

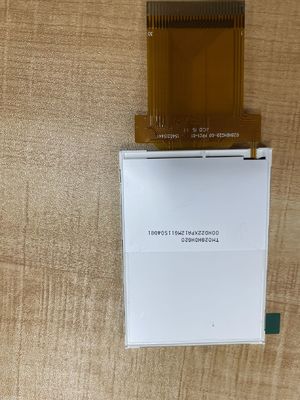

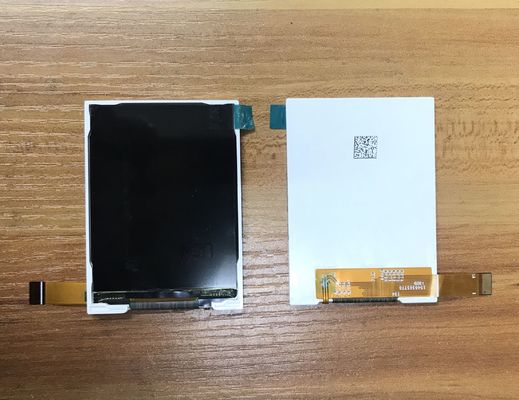

Large Image :  TM028HDZG59 TIANMA 2.8" 240(RGB)×320 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM028HDZG59
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1500PCS
Contact Now

TM028HDZG59 TIANMA 2.8" 240(RGB)×320 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM028HDZG59 BRAND: TIANMA
SIZE: 2.8 Inch RESOLUTION: 240(RGB)×320 (QVGA) 141PPI
BRIGHTNESS: 300 Cd/m² (Typ.) Viewing Angle: 70/70/70/58 (Typ.)(CR≥10)
TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

QVGA TIANMA LCD Panel

,

SVGA TIANMA LCD Panel

TIANMA TM028HDZG59 Application Details

Basic Information :
Brand

Model
TM028HDZG59
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
2.8 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

Vibration
-
Typical Features :




TIANMA TM028HDZG59 Mechanical Details

Pixel Features :
Resolution
240(RGB)×320, QVGA
Dot Pitch(mm)
0.060×0.180 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.180×0.180 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
43.2(H) × 57.6(V)
Bezel Area(mm)
-
Outline Dim.(mm)
50(H) × 69.2(V)
Depth(mm)
3.1 (Typ.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
3:4 (H:V)
Orientation
Portrait type
Other Spec :
Weight
TBD
Treatment



TIANMA TM028HDZG59 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
400:1 (Typ.) (Transmissive)
Viewing Angle
70/70/70/58 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.2908; Wy:0.3210
Display Colors
65K/262K
Color Temperature
7945K
White Uniformity
-
1931 Color Gamlt :
NTSC Ratio
62%
sRGB
85% coverage
Adobe RGB
65% coverage
DCI-P3
64% coverage
Rec.2020
46% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



TIANMA TM028HDZG59 Interface Detail

Signal Electrical :
Voltage Supply
2.7/3.3V (Min./Max.)(VCI/VCC1/VCC2)
Current Supply
-
Signal Type :
16-bit 8080 parallel
Logic Voltage
-
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


1.0 mm
37 pins
1 pcs



TIANMA TM028HDZG59 Backlight Details

Backlight Features :
Type
WLED
Quantity
1S4P
Position
Edge light type
Replacement
-
Shape
4 strings
Life Time
-
Lamp Electrical :
Voltage Supply
3.2V (Typ.)
Current Supply
20mA (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
