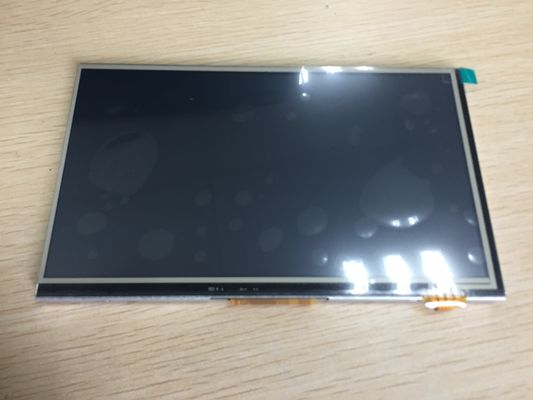

Product Details:
|
| MODEL NUMBER: | TM070RDHG71 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480, WVGA, 134PPI |
| BRIGHTNESS: | 555 Cd/m² (Typ.) | Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | Lamp Type: | WLED |
| SIGNAL LNTERFACE: | LVDS | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | TM070RDHG71 | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0642×0.1790 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1926×0.1790 mm (H×V) [134PPI] | |
| Mechanical Size : | Display Area | 154.08×85.92 mm (H×V) | Bezel Area | - |
| Outline Dim. | 164.9×100 mm (H×V) | Outline Depth | 5.7±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Withtou | |||
| Other Features : | Weight | 156g (Typ.) | Surface | Antiglare |
| Basic Information : | Brightness | 555 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.332 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6727K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| D-IC Detail : | COG Built-in HX8282-A02 + HX8664-B |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 20K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3S9P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 9.3±0.3V | Current Input | 180mA (Typ.) | ||
| Consumption | 1.67±0.05W | |||||
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/11.9/20/-7V (VDD/AVDD/VGH/VGL) | Current Input | - | ||

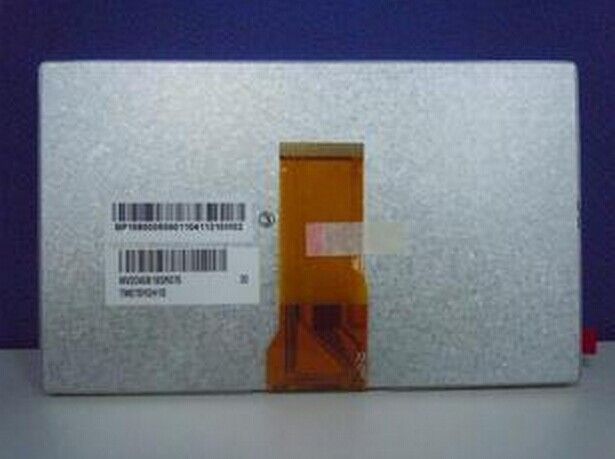

| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.08(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×6(D) mm, with surface treament of Antiglare, net weight of 156g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM070RDHG71 can provides 555 cd/m² display brightness 900:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 3S9P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM070RDHG71 utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/11.9/20/-7V (VDD/AVDD/VGH/VGL)
