Product Details:
|

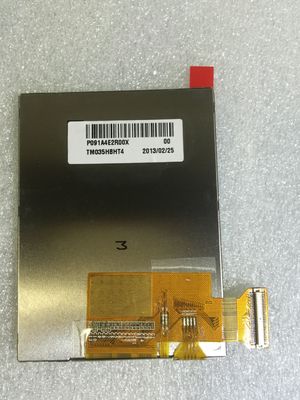

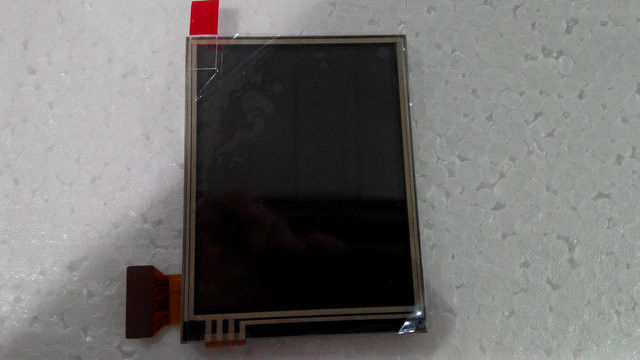

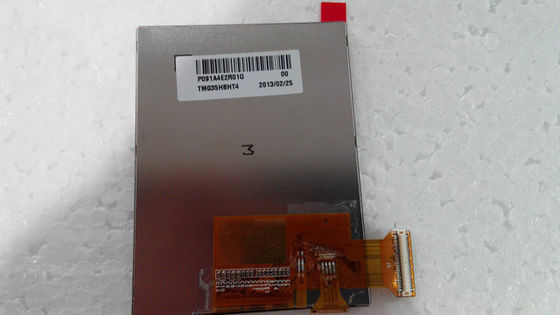

| MODEL NUMBER: | TM035HBHT4 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.5 Inch | RESOLUTION: | 320(RGB)×240 [QVGA] 70PPI |
| BRIGHTNESS: | 115 Cd/m² (Typ.) | Viewing Angle: | 40/45/55/40 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C | SIGNAL LNTERFACE: | LVDS |
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TM035HBHT4 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 60 °C | -30 ~ 70 °C | - | ||
| Designed For : | ||||
| Specific Features : |
|
|||

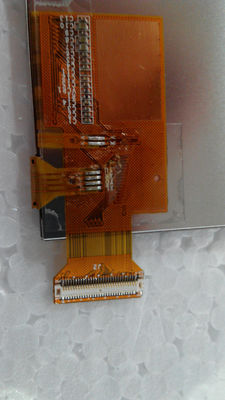

| Remarks : | Left side FPC (17.00mm length) | |||
| Panel Size : | 3.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 240(RGB)×320, QVGA | RGB Vertical Stripe | 0.0745×0.2235 mm | 0.2235×0.2235 mm [113PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 53.64×71.52 mm | - | 64×85 mm | 4.10±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:4 (W : H) | Portrait type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| 1 point | Without touch controller | - | 4-wire Resistive Touch | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Hard coating | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 115 cd/m² (Typ.) | ECB, Normally White, Transflective | 150:1 (Typ.) (Transmissive) 6.5:1 (Typ.) (Reflective) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 40/45/55/40 (Typ.)(CR≥10) | 6 o'clock | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7272K | 262K (6-bit) | X:0.301; Y:0.321 | |
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 7% (Typ.) |
| Reverse Scan : | No |
|---|---|
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 2.8/2.8V (Typ.)(IOVCC/VCC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3IOVCC; 0.7IOVCC≤VIH≤IOVCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) + SPI | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| Panasonic | AXK6F60345YJ | 1 pcs | 0.5 mm | 60 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 6S1P | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20mA (Typ.) | 19.2V (Typ.) | 384mW (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 112 pcs / box | - | 516×336×226 mm (L×W×H) |
