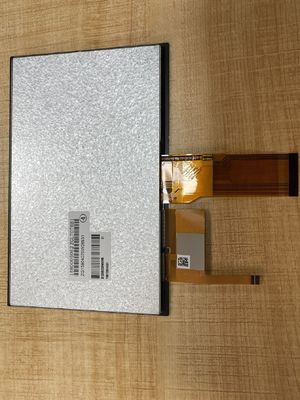

Product Details:
|
| MODEL NUMBER: | TM070RVHG01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480, WVGA, 134PPI |
| BRIGHTNESS: | 300 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM070RVHG01 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | - | ||
| Application : | ||||
| Typical Features : |
|
|||
| Screen Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0642×0.1790 mm | 0.1926×0.1790 mm [134PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 154.08×85.92 mm | 157.08×89.39 mm | 171.5×110.3 mm | 7.35±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||

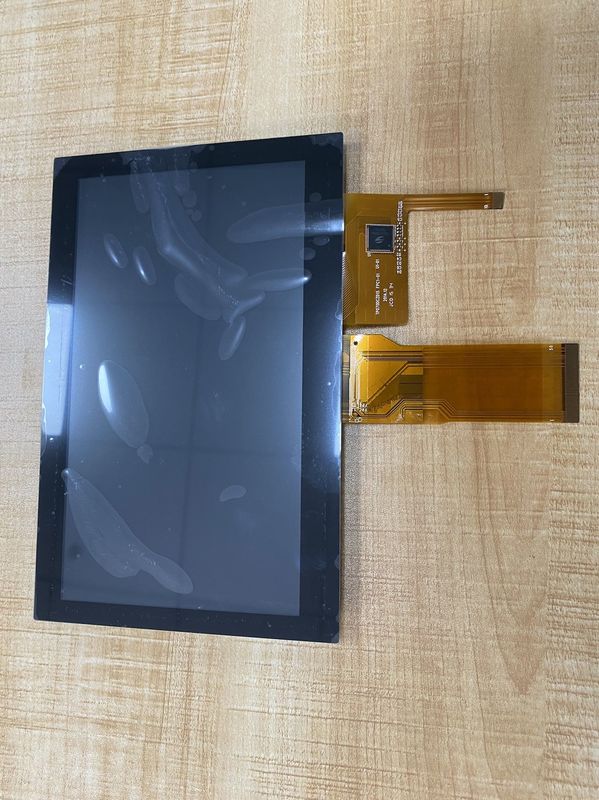

| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| 2 points | I²C | With touch controller | PCAP, Air Bonding | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 216g (Typ.) | With Cover Lens | Hard coating (3H), Reflection 4.0% (Max.) | ||
| Holes & Brackets : | Without | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 70/70/60/70 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7209K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.302; Y:0.321 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 73% | 55% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(9 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 30K(Typ.) | 3S8P | Array | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 9.6/10.8V (Typ./Max.) | 160/200mA (Typ./Max.) | 1.54/2.16W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGG/VEE) | - | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6/8-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | ||||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 24 pcs / box | 11.01±0.55 Kgs | 544×365×250 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
