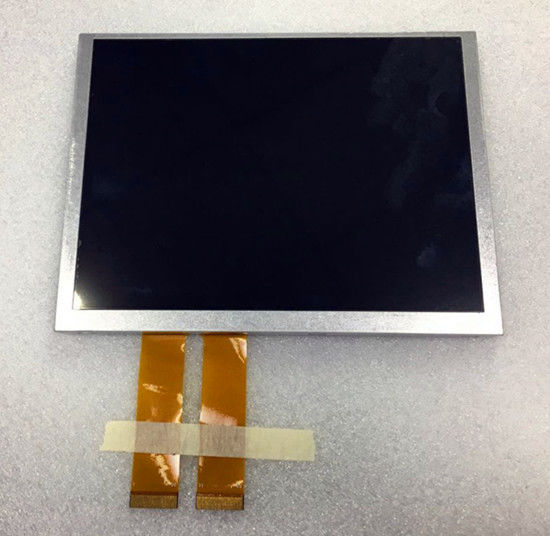

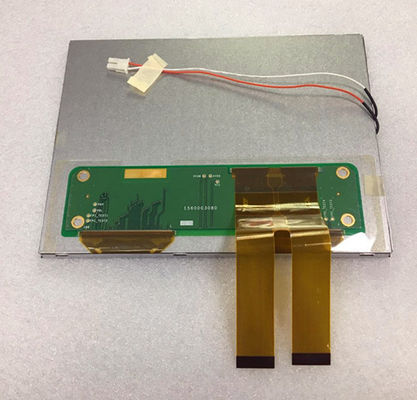

Product Details:
|
| MODEL NUMBER: | TM070SDH01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | RESOLUTION |
| BRIGHTNESS: | 200 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Luminance | 200 cd/m² (Typ.) | Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.337 | Support Color | 262K (6-bit) |
| Color Temperature | 6576K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 65% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 49% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Basic Detail : | Manufacturer | Model Name | TM070SDH01 1 Compatible | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | TS070SAATD01-00 | |
| Panel Size | 7.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS | ||
| Features : |
|
|||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Time Controller (T-CON) : | Need external T-CON |
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.059×0.176 mm | Pixel Pitch(W×H) | 0.176×0.176 mm [144PPI] | |
| Physical Size : | Active Viewing | 141(W)×105.75(H) mm | Overall Dim. | 155.5(W)×118.7(H) mm |
| Bezel Opening | 143.5(W)×108.25(H) mm | Overall Depth | 5.7±0.2 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 183g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 3.577/35.788/0.217/0.542mA (Typ.)(ICC/IAVDD/IGH/IGL) | Input Voltage | 3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 2 pcs | 30 pins | |||||
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3S6P | Life | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 120mA (Typ.) | Input Voltage | 9.6V (Typ.) | ||
| Consumption | 1.152W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 50 pcs / box | 530×350×250 mm | 13.00 Kgs |
