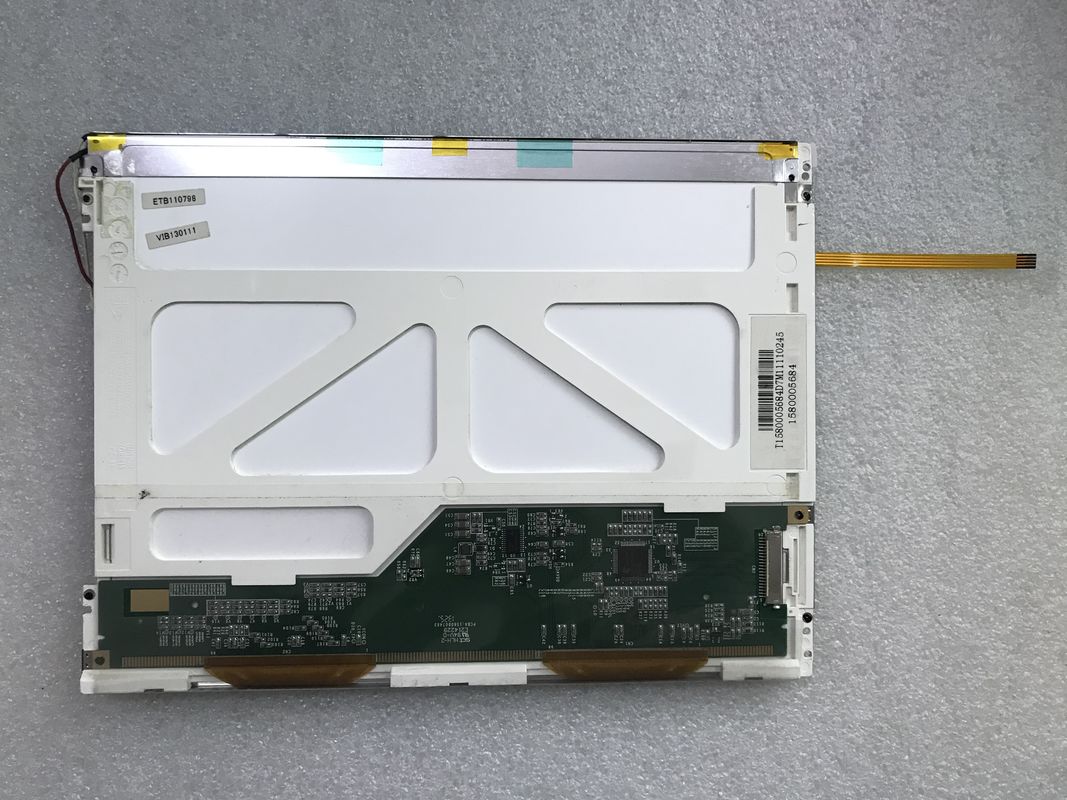

Product Details:
|
| MODEL NUMBER: | TM104SBH02 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 800(RGB)×600, SVGA, 96PPI |
| BRIGHTNESS: | 230 Cd/m² (Typ.) | Viewing Angle: | 65/65/50/65 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TM104SBH02 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 60 °C | -20 ~ 70 °C | - | ||
| Used For : | ||||
| Specific Features : |
|
|||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 230 (Typ.) | 65/65/50/65 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 400 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6685K | 262K (6-bit) | X:0.310; Y:0.325 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 45% | 63% | 47% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 47% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25 (Typ.)(9 points) | ||
| Panel Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.264×0.264 [96PPI] | 0.088×0.264 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 211.2(H) × 158.4(V) | 214.2(H) × 161.8(V) | 236(H) × 176.95(V) | 7.3 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||

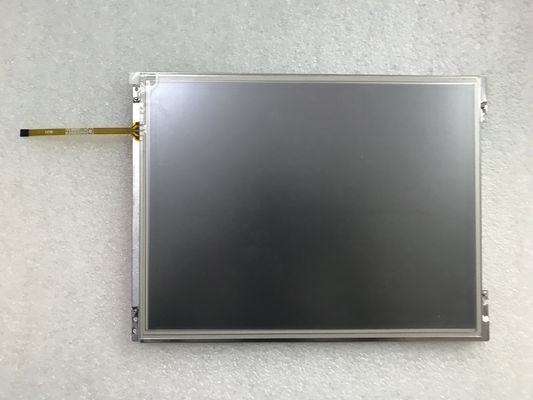

| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| Without touch controller | 1 point | - | 4-wire Resistive Touch | |
| Mounting : | Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| TBD | - | Antiglare, Hard coating (3H) | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6S5P | Array | 20K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 19.2V (Typ.) | 120mA (Typ.) | 2.3W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLE-2PINS-AC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 260/380mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF19K-20P-1H | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C6B-070A | |

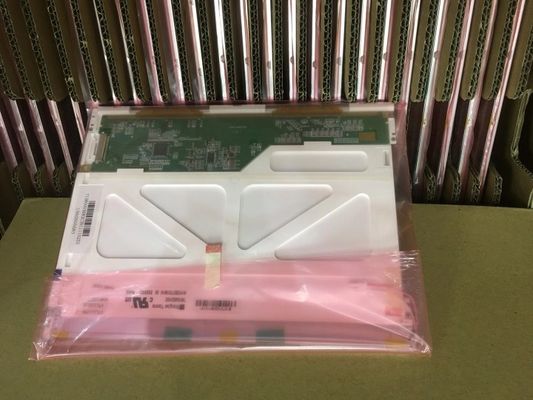

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | 11.28 Kgs | 530×350×250 mm (L×W×H) |
