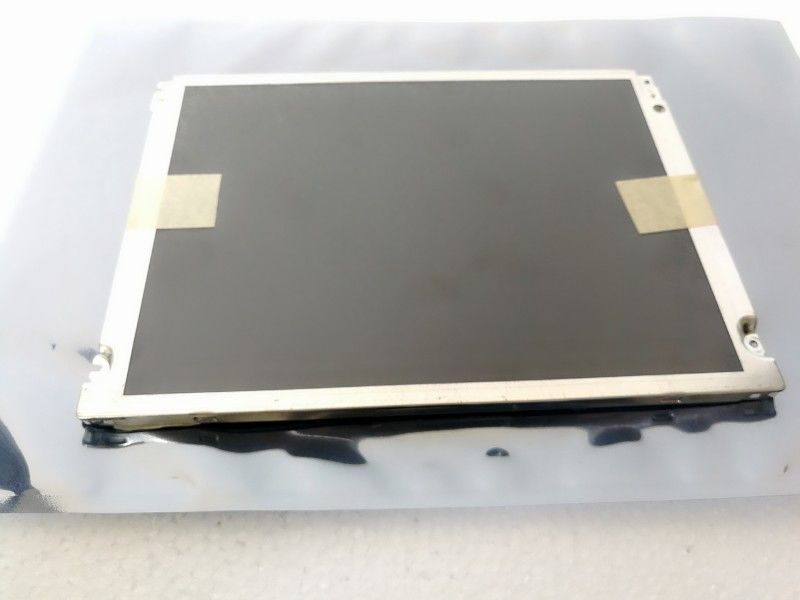

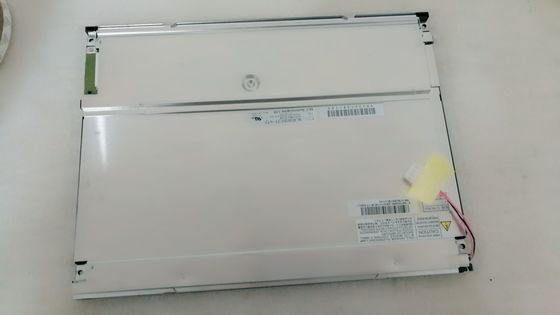

Product Details:
|
| MODEL NUMBER: | TM121SCS01 | BRAND: | AVIC |
|---|---|---|---|
| SIZE: | 12.1 Inch | RESOLUTION: | 800(RGB)×600, SVGA, 82PPI |
| BRIGHTNESS: | 400CD/M2 | Viewing Angle: | 70/70/50/60 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TM121SCS01 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Panel Size : | 12.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.1025×0.3075 mm | 0.3075×0.3075 mm [82PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 246×184.5 mm | 249.0×188.3 mm | 279×209 mm | 11.0 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (7 pcs) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 425g | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/50/60 (Typ.)(CR≥10) | 6 o'clock | 10/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 57% | 79% | 60% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 59% | 43% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Power Consumption : | 6.8W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 270/325mA (Typ./Max.) | 3.3V (Typ.) | - | ||||

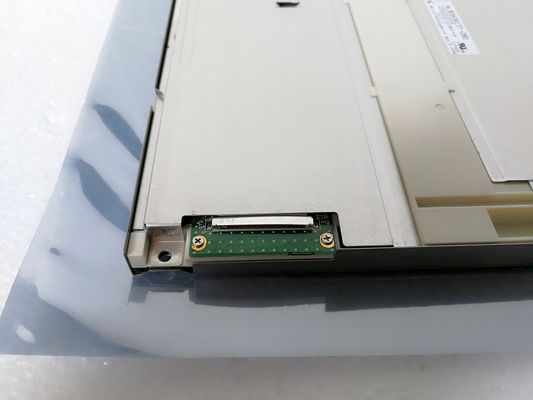

| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| STM | MSB240420HE | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-080B | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | Straight | 2 pcs | 50K(Typ.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 6.0mA (Typ.) | 770V (Typ.) | |||||
| Turn-on Voltage | Lamp Frequency | |||||
| 930/1120V (Max.)(Ta=+25/0℃) | 40/55/60KHz (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 2 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 279(W)×209(H)×11(D) mm, viewing area size of 249.0(W)×188.3(H) mm, with surface treament of Antiglare, net weight of 425g. As a TN, Normally White, Transmissive LCM product, TM121SCS01 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 55% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. TM121SCS01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
