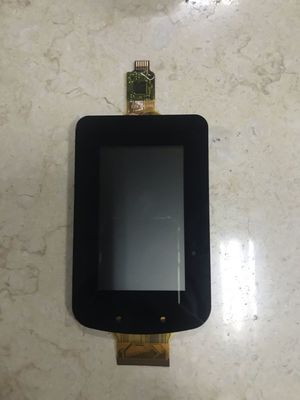

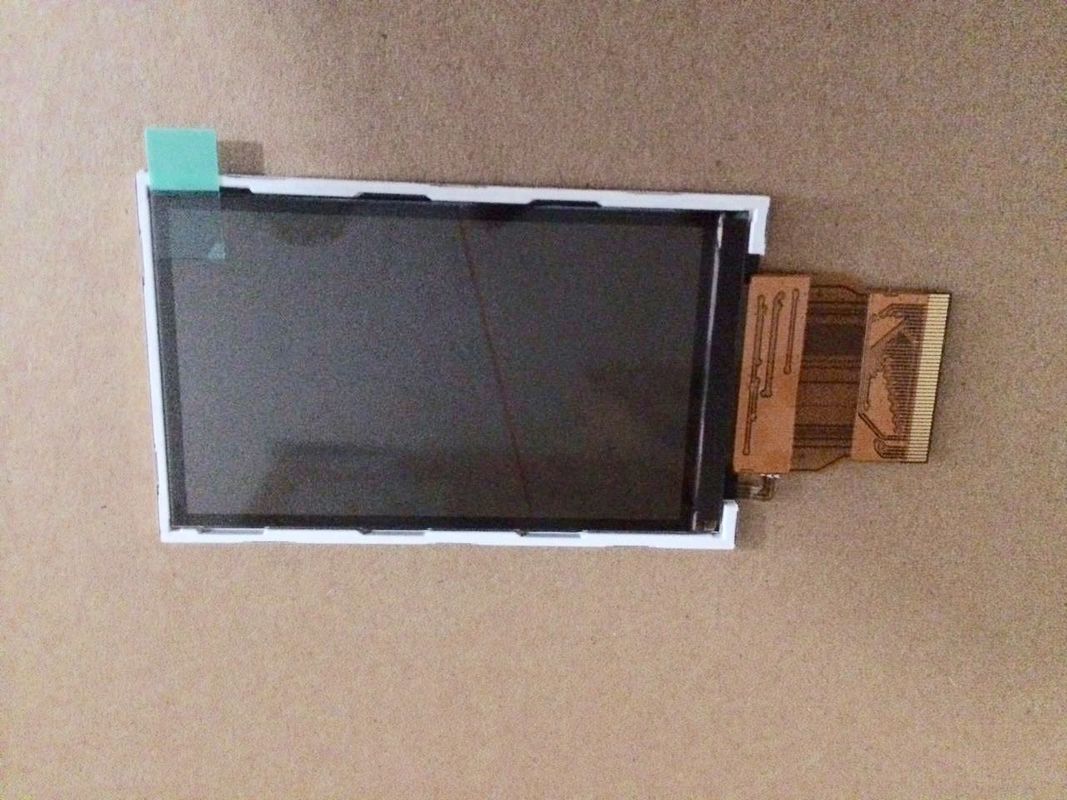

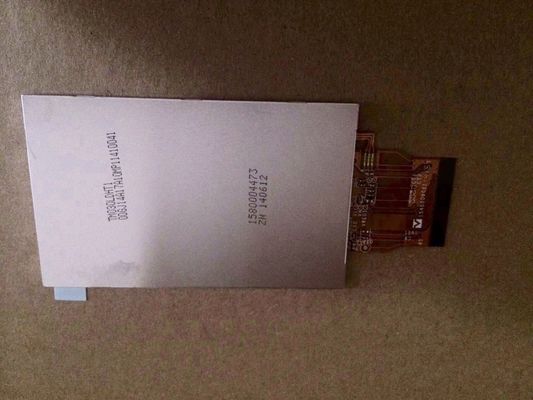

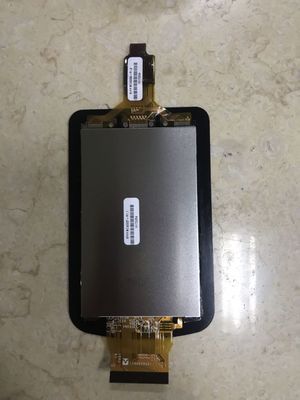

TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY

TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY
TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM030LDHT1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 3000PCS
Contact Now

TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM030LDHT1 BRAND: TIANMA
SIZE: 3.0"inch RESOLUTION: 240(RGB)×400 [WQVGA] 156PPI
BRIGHTNESS: 130 Cd/m² (Typ. Viewing Angle: 40/45/55/40 (Typ.)(CR≥10)
TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

QVGA TIANMA LCD Panel

,

SVGA TIANMA LCD Panel

TIANMA TM030LDHT1 Application Details

Basic Detail :
Manufacturer

Model Name
TM030LDHT1
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
3.0 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

Vibration Level
-
Features :

  • Transflective
  • WLED Backlight
Remarks :
R-EVT; Backlight: Serial 1LED 3LED 4LED Optional



IANMA TM030LDHT1 Optical Details

Basic Detail :
Luminance
130 cd/m² (Typ.)
Contrast Ratio
100:1 (Typ.) (Transmissive) 8:1 (Typ.) (Reflective)
Good View at
6 o'clock
Response Speed
35 (Typ.)(Tr+Td) ms
Viewing Angle
40/45/55/40 (Typ.)(CR≥10)
Operating Mode
ECB, Normally White, Transflective
Color Performance :
Chromaticity
Wx:0.300; Wy:0.320
Support Color
65K/262K
Color Temperature
7351K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
34%
sRGB
48% coverage
Adobe RGB
36% coverage
DCI-P3
36% coverage
Rec.2020
26% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
3D Tech
-
Reflectance
6.85% (Typ.)





TIANMA TM030LDHT1 Mechanical Details

Pixel Features :
Number of Pixel
240(RGB)×400, WQVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.054×0.162 mm
Pixel Pitch(W×H)
0.162×0.162 mm [156PPI]
Physical Size :
Active Viewing
38.88(W)×64.8(H) mm
Overall Dim.
47.28(W)×76.4(H) mm
Bezel Opening
39.68(W)×65.6(H) mm
Overall Depth
2.4±0.2 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Portrait type
Aspect Ratio(W:H)
3:5
Shape Style

Other Detail :
Mass
18.3g
Surface
Clear, Hard coating (3H)



TIANMA TM030LDHT1 Electronics Details

Refresh Rate :
60Hz
Driver IC :
COG Built-in HX8352B



TIANMA TM030LDHT1 Interface Detail

Signal Electrical :
Input Current
TBD
Input Voltage
2.8/2.8V (Typ.)(IOVCC/VCC)
Consumption
49.5mW (Typ.)
Signal Interface
CPU/RGB/SPI
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


0.5 mm
45 pins
1 pcs



TIANMA TM030LDHT1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
4S1P
Position
Edge light type
Exchange
-
Lamp Shape
1 string
Lamp Life
20K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
12.8V (Typ.)
Input Current
20mA (Typ.)
Consumption
256mW (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



TIANMA TM030LDHT1 Packing Details

Package Box : Amount Size (L×W×H) Weight
420 pcs / box 15.25±0.76 Kgs 530×351×226 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY 2TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY 3
