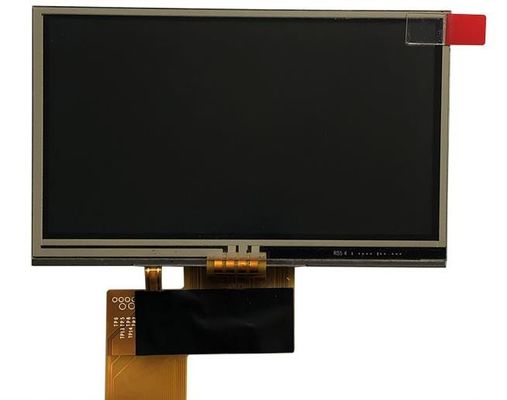

Product Details:
|
| MODEL NUMBER: | TM070DDHG03-40 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 1024(RGB)×600 (WSVGA) 169PPI |
| Viewing Angle: | 75/75/70/75 (Typ.)(CR≥10) | BRIGHTNESS: | 320 Cd/m² (Typ.) |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand | Model | TM070DDHG03-40 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 7.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | - | ||
| Typical Features : |
|
|||
| Pixel Features : | Resolution | 1024(RGB)×600, WSVGA | Dot Pitch(mm) | 0.050×0.150 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.150×0.150 (H×V) [169PPI] | |
| Mechanical Size : | Active Area(mm) | 153.6(H) × 90(V) | Bezel Area(mm) | 156.2(H) × 92.6(V) |
| Outline Dim.(mm) | 165.75(H) × 105.39(V) | Depth(mm) | 3.4±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 17:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 112g (Typ.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 320 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 20 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.306; Y:0.327 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6892K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 1.58W (Typ.) |
| Driver IC : | COG Built-in HX8282 + HX8677 |
| Signal Electrical : | Voltage Supply | 3.3/10.0/16.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) | Current Supply | 16/30/0.3/0.3mA (Typ.)(IDD/AIDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 388/600mW (Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | ||||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S6P | Life Time | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 9.3V (Typ.) | Current Supply | 120mA (Typ.) | ||
| Consumption | 1.19W (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 50 pcs / box | TBD | 530×350×250 mm (L×W×H) |
