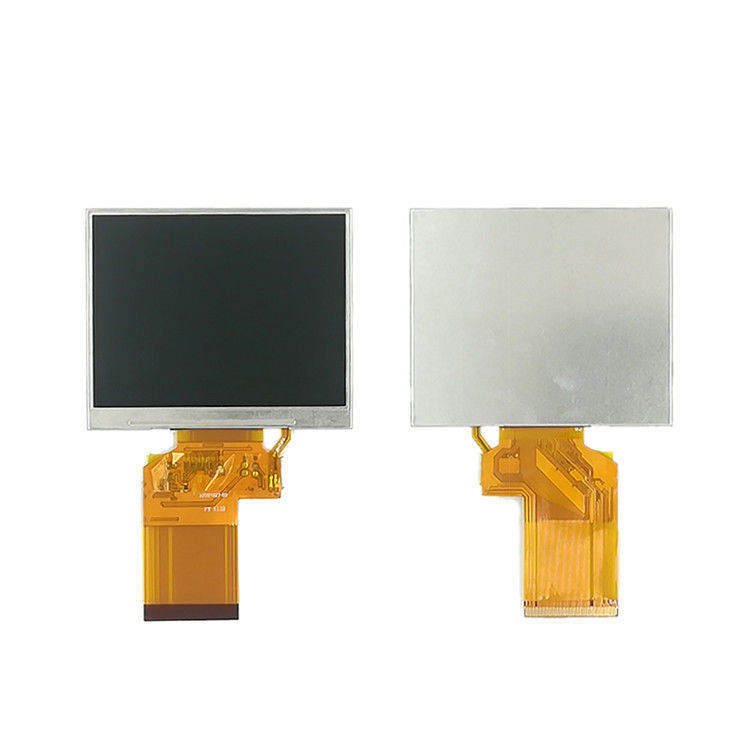

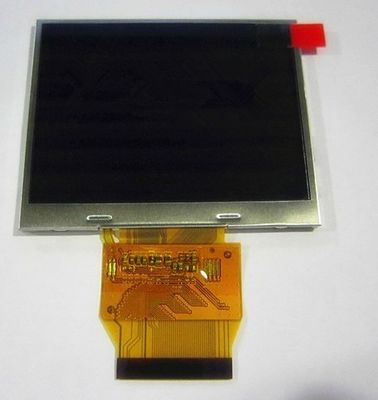

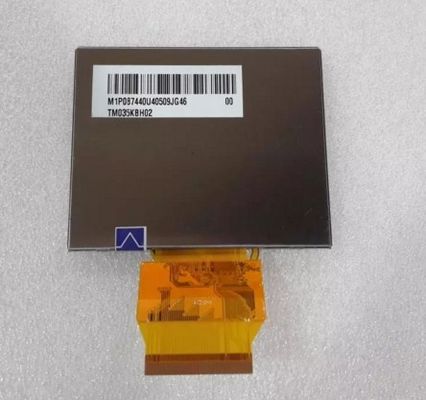

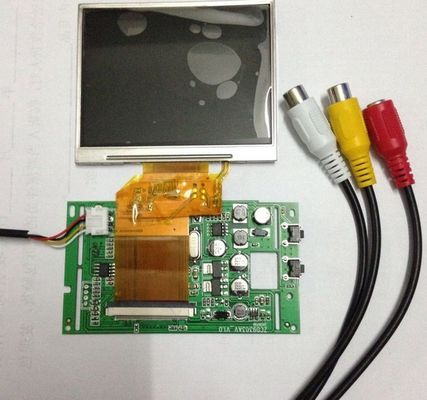

Product Details:
|
| MODEL NUMBER: | TM035KDH02 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.5 Inch | RESOLUTION: | 320(RGB)×240 [QVGA] 115PPI |
| BRIGHTNESS: | 200 Cd/m² (Typ.) | Viewing Angle: | 60/60/40/60 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | TM035KDH02 1 Compatible | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | TS035KAAVD02-00 | |
| Panel Size | 3.5 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Basic Information : | Luminance | 200 cd/m² (Typ.) | Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.333 | Support Color | 16.7M (6-bit + Dithering) |
| Color Temperature | 6610K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 49% | sRGB | 67% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.073×0.219 mm | Pixel Pitch(W×H) | 0.219×0.219 mm [115PPI] | |
| Physical Size : | Active Viewing | 70.08(W)×52.56(H) mm | Overall Dim. | 76.9(W)×63.9(H) mm |
| Bezel Opening | 72.88(W)×55.36(H) mm | Overall Depth | 2.8±0.2 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Other Detail : | Mass | 29.2g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Reverse Scan : | No |
|---|---|
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 35/50mW (Typ./Max.) | Signal Interface | Digital RGB (8/24-bit) + SPI, CCIR601/656 | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 54 pins | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 76.9(W)×63.9(H)×3(D) mm, viewing area size of 72.88(W)×55.36(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 29.2g (Typ.). As a TN, Normally White, Transmissive LCM product, TM035KDH02 can provides 200 cd/m² display brightness 350:1 transimissive contrast ratio, 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM035KDH02 utilizes Digital RGB (8/24-bit) + SPI, CCIR601/656 as it's signal inputting systerm, which connected by 54 pins FPC with power supply voltage of 3.3V (Typ.). For more latest product detail of TM035KDH02 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with TIANMA or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
