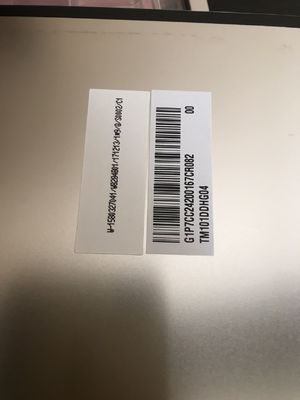

Product Details:
|
| MODEL NUMBER: | TM101DDHG04 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 10.1 Inch | RESOLUTION: | 1024(RGB)×600, WSVGA, 117PPI |
| BRIGHTNESS: | 300 Cd/m² (Typ.) | Viewing Angle: | 80/80/75/80 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand | Model | TM101DDHG04 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 10.1" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | -10 ~~ 50 °C |
| RoHS | Vibration | - | ||
| Typical Features : |
|
|||
| Pixel Features : | Resolution | 1024(RGB)×600, WSVGA | Dot Pitch(mm) | 0.0725×0.2088 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2175×0.2088 (H×V) [117PPI] | |
| Mechanical Size : | Active Area(mm) | 222.72(H) × 125.28(V) | Bezel Area(mm) | 225.72(H) × 128.28(V) |
| Outline Dim.(mm) | 233.1(H) × 137.1(V) | Depth(mm) | 3.05/3.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 210/220g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/75/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 7/9 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.281; Y:0.300 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 9383K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 65% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Power Consumption : | 2.43W (Max.) |
| Driver IC : | COG Built-in HX8282*1 + HX8677*2 |
| Signal Electrical : | Voltage Supply | 3.3/11.02/21.14/-7V (Typ.)(VDD/AVDD/VGH/VGL) | Current Supply | 22/40/0.8/0.8mA (Max.)(IDD/AIDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | ||||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 10S3P | Life Time | 15K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 8.4/9.0/9.45V (Min./Typ./Max.) | Current Supply | 200mA (Typ.) | ||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||

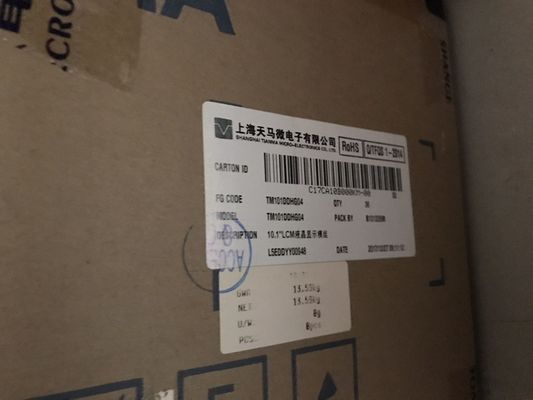

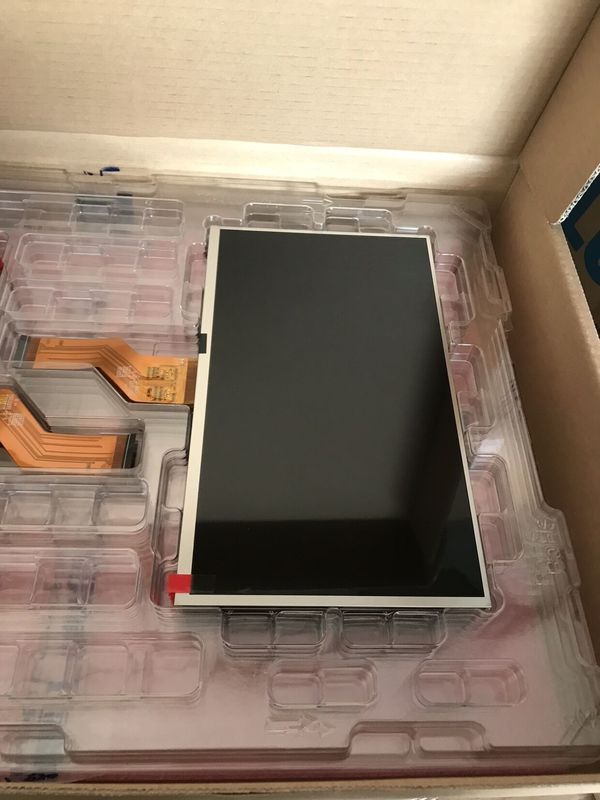

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 36 pcs / box | 14.07±0.70 Kgs | 544×365×250 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
