Product Details:
|
| Model Name: | LS010B7DH01 | Pixel Number: | 128×128 129PPI |
|---|---|---|---|
| Size: | 0.99 Inch | Arrangement: | Rectangle |
| Contrast Ratio: | 14:1 (Typ.) (RF) | Viewing Angle: | 40/40/60/60 (Min.)(CR≥3) |
| Response: | 10/20 (Typ.)(Tr/Td) Ms | Max. Ratings: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS010 Series LS010B7DH02 LS010B7DH01
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS010B7DH01 | CG-Silicon , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 85 °C | - |
| Panel Size : | 0.99 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 128×128 | Rectangle | 0.1955×0.1955 mm | 0.1955×0.1955 mm [129PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 25.024×25.024 mm | - | 33×33.4 mm | 1.64±0.2 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Circular | 1:1 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 3.70g (Typ.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| - | TN, Normally White, Transflective | 14:1 (Typ.) (Reflective) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 40/40/60/60 (Min.)(CR≥3) | - | 10/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7203K | Monochrome (1-bit) | X:0.300; Y:0.330 | |
| Transmittance : | 0.25% (Typ.)(with Polarizer) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 17.0% (Typ.) | |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 5.0/5.0V (Typ.)(VDD/VDDA) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | SPI | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 10 pins | |||||

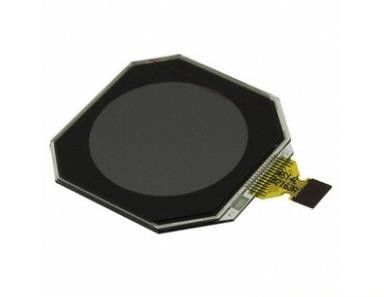

LS010B7DH01 supports display 128×128 with aspect ratio of 1:1 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 25.024(W)×25.024(H) mm, outline size of 33(W)×33.4(H)×1.84(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.70g (Typ.). As a TN, Normally White, Transflective LCM product, LS010B7DH01 can provides , 14:1 (Typ.) reflective contrast ratio, 40/40/60/60 (Min.)(CR≥3) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of Monochrome colors. This product have no backlight. LS010B7DH01 utilizes SPI as it's signal inputting systerm, which connected by 10 pins FPC with power supply voltage of 5.0/5.0V (Typ.)
