0.96INCH 128×128 133PPI LS010B7DH02 Sharp TFT LCD Display

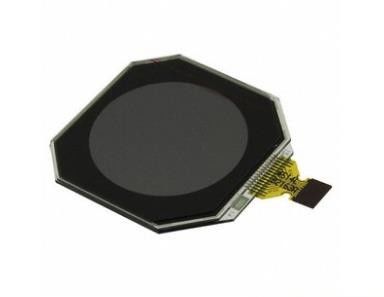

Large Image : 0.96INCH 128×128 133PPI LS010B7DH02 Sharp TFT LCD Display

Product Details:

Place of Origin:	JAPAN
Brand Name:	SHARP
Certification:	ISO9001
Model Number:	LS010B7DH02

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	578×382×153 mm
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	2000PCS

Contact Now

0.96INCH 128×128 133PPI LS010B7DH02 Sharp TFT LCD Display

Description

Size:	0.96 Inch	Type:	CG-Silicon, LCM
Active Area:	24.384(H)×24.384(V) Mm	Pixel Format:	128×128 133PPI
Viewing Angle:	40/40/60/60 (Min.)(CR≥3)	Configuration:	Rectangle
Interface Type:	SPI , 10 Pins FPC	Environment:	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C
Highlight:	CCFL LVDS Industrial LCD Panel , QVGA Sharp TFT LCD Display

LS010 Series LS010B7DH02 LS010B7DH01

Sharp LS010B7DH02 Optical Details

Basic Detail :	Luminance - Contrast Ratio 14:1 (Typ.) (Reflective) Good View at - Response Speed 10/20 (Typ.)(Tr/Td) ms Viewing Angle 40/40/60/60 (Min.)(CR≥3) Operating Mode TN, Normally White, Transflective
Color Performance :	Chromaticity Wx:0.300; Wy:0.330 Support Color Monochrome (1-bit) Color Temperature 7203K White Variation -
Dispaly Performance :	Outdoor Visibility Sunlight Readable Transmissivity 0.25% (Typ.)(with Polarizer) 3D Tech - Reflectance 17% (Typ.)

Sharp LS010B7DH02 Mechanical Details

Pixel Features :	Number of Pixel 128×128 Arrangement Rectangle Dot Pitch(W×H) - Pixel Pitch(W×H) 0.1905×0.1905 mm [133PPI]
Physical Size :	Active Viewing 24.384(W)×24.384(H) mm Overall Dim. 33(W)×33.4(H) mm Bezel Opening - Overall Depth 1.64±0.2 mm
Outline Features :	Form Shape Flat Circular Orientation Landscape type Aspect Ratio(W:H) 1:1 Shape Style
Other Detail :	Mass 3.70g (Typ.) Surface Antiglare, Hard coating (3H)

Sharp LS010B7DH02 Interface Detail

Signal Electrical :	Input Current - Input Voltage 5.0/5.0V (Typ.)(VDD/VDDA) Consumption - Signal Interface SPI
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 10 pins 1 pcs

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

0.96INCH 128×128 133PPI LS010B7DH02 Sharp TFT LCD Display 0
