Product Details:
|

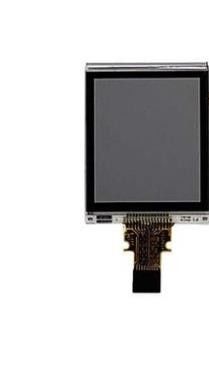

| Model Name: | LS010B7DH05 | Number: | 192×192 200PPI |
|---|---|---|---|
| Size: | 0.96 Inch | Viewing Angle: | 60/60/60/60 (Min.)(CR≥2) |
| Arrangement: | Rectangle | Screen Type: | LCM, CG-Silicon |
| Signal Type: | SPI , FPC 10 Pins | Max. Ratings: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
| Basic Information : | |
|---|---|
| Environment : |
| Pixel Features : | |
|---|---|
| Mechanical Size : | |
| Outline Features : | |
| Other Spec : |
| Basic Information : | |
|---|---|
| Color Performance : | |
| Dispaly Performance : |
| Frame Rate : | |
|---|---|
| Total Consumption: |
LS010B7DH05 supports display 192×192 with aspect ratio of 1:1 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 24.384(W)×24.384(H) mm, outline size of 29.7(W)×30.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.00g (Max.). As a TN, Normally White, Transflective LCM product, LS010B7DH05 can provides , 17:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Min.)(CR≥2) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of Monochrome colors. This product have no backlight. LS010B7DH05 utilizes SPI as it's signal inputting systerm, which connected by 10 pins FPC with power supply voltage of 3.0/3.0V (Typ.)
