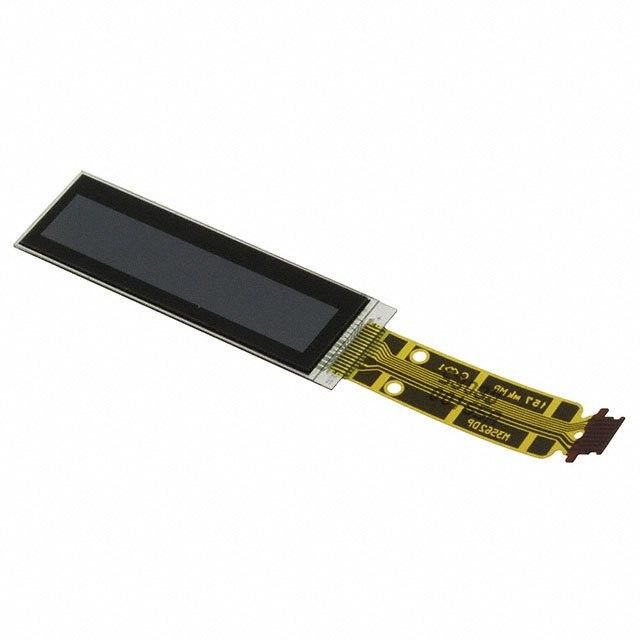

Product Details:
|
| SIZE: | 1.2" | BRAND: | SHARP |
|---|---|---|---|
| Pixel Format: | 184×38 160PPI | Active Area: | 29.072(H)×6.004(V) Mm |
| Type: | CG-Silicon, LCM | Support Color: | Monochrome |
| Touch Panel: | Without | Environment: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
| Basic Info : | Panel Brand | SHARP | Panel Model | LS012B7DD01 |
|---|---|---|---|---|
| Diagonal Size | 1.2" | Application | ||
| Panel Type | CG-Silicon , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -10 ~ 70 °C | Storage Temp. | -20 ~ 80 °C |
| RoHS State | Vibration Rating | - |
| Basic Information : | Brightness | - | Contrast Ratio | 22:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | - | Optical Mode | Normally White, Transflective | |
| Viewing Direction | - | Response Time | - | |
| Color Performance : | Chromaticity | - | Color Numbers | Monochrome (1-bit) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | 0.25% (Typ.)(with Polarizer) |
| 3D Type | - | Reflectance | 12/15% (Min./Typ.) |
| Pixel Features : | Pixel Format | 184×38 | Dot Pitch | 0.158×0.158 mm (H×V) |
|---|---|---|---|---|
| Configuration | Rectangle | Pixel Pitch | 0.158×0.158 mm (H×V) [160PPI] | |
| Mechanical Size : | Display Area | 29.072×6.004 mm (H×V) | Bezel Area | - |
| Outline Dim. | 35.1×11 mm (H×V) | Outline Depth | 0.741 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | >3:1 (H:V) | Shape Style | ||
| Other Features : | Weight | 0.60g | Surface | Hard coating (3H) |
| Basic Information : | Brightness | - | Contrast Ratio | 22:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | - | Optical Mode | Normally White, Transflective | |
| Viewing Direction | - | Response Time | - | |
| Color Performance : | Chromaticity | - | Color Numbers | Monochrome (1-bit) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | 0.25% (Typ.)(with Polarizer) |
| 3D Type | - | Reflectance | 12/15% (Min./Typ.) |
| Signal Systerm : | 3-wire SPI | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.0V (Typ.) | Current Input | - | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 8 pins | 1 pcs | ||||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 1600 pcs / box | - | 578×382×255 mm |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
