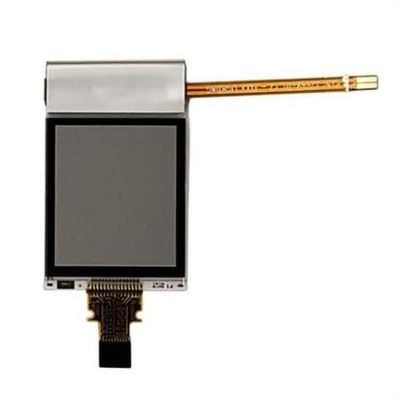

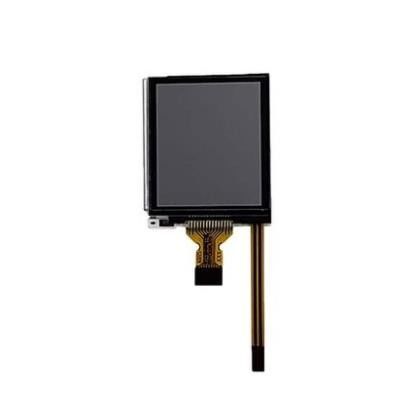

Product Details:
|
| Brand: | Sharp | Size: | 1.26 Inch |
|---|---|---|---|
| Model: | LS013B7DH05 | Active Area: | 20.88(H)×24.36(V) Mm |
| Viewing Angle: | 60/60/60/60 (Typ.) | Signal Interface: | SPI |
| Lamp Type: | No B/L | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS013 Series LS013B7DH06 LS013B7DH05 LS013B7DH03 LS013B7DH01
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| - | 60/60/60/60 (Typ.)(CR≥2) | 10/20 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | Transflective | 20:1 (Typ.) (Reflective) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7203K | Monochrome (1-bit) | X:0.300; Y:0.330 | |
| Transmissivity : | 0.4% (Typ.)(with Polarizer) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | 14.5% (Typ.) | |
| Panel Size : | 1.26" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 144×168 | Rectangle | 0.145×0.145 [175PPI] | 0.145×0.145 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 20.88(H) × 24.36(V) | - | 24.68(H) × 30(V) | 0.75±0.1 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 4:5 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 1.10g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/3.3/3.3V (Typ.)(VDDA/VDD/VIH) | - | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | SPI | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 10 pins | 1 pcs | ||||

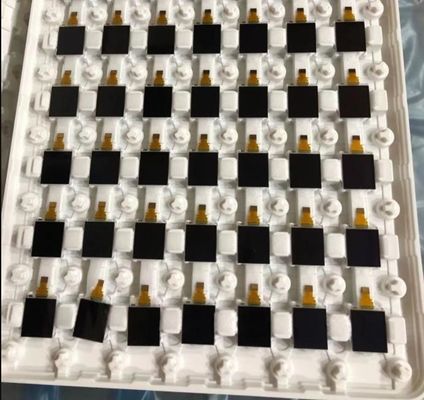

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 1120 pcs / box | 6.5 Kgs | 530×365×230 mm (L×W×H) |
LS013B7DH05 supports display 144×168 with aspect ratio of 4:5 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 20.88(W)×24.36(H) mm, outline size of 24.68(W)×30(H)×0.76(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.10g (Max.). As a Transflective LCM product, LS013B7DH05 can provides , 20:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of Monochrome colors. This product have no backlight. LS013B7DH05 utilizes SPI as it's signal inputting systerm, which connected by 10 pins FPC with power supply voltage of 3.3/3.3/3.3V (Typ.)
