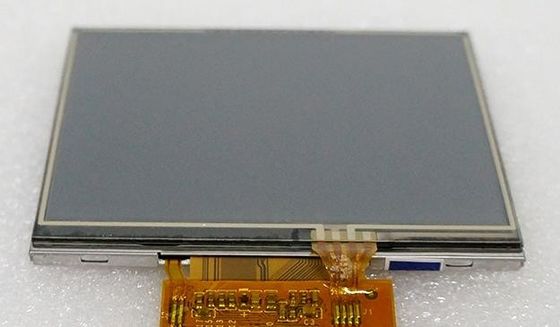

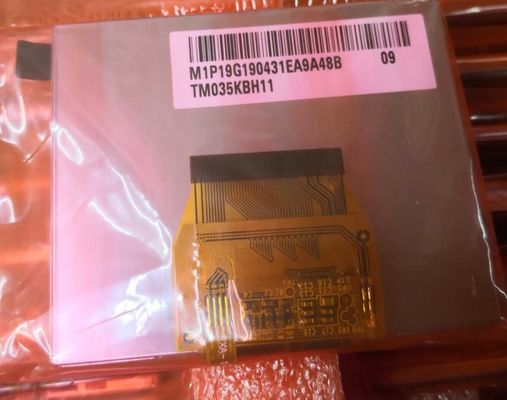

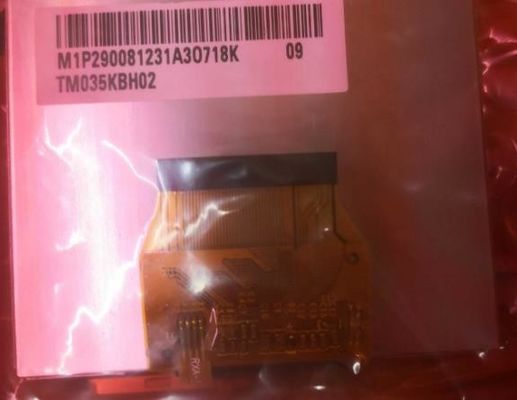

Product Details:
|
| MODEL NUMBER: | TM035KBH11-09 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.5"inch | RESOLUTION: | 320(RGB)×240 (QVGA) 115PPI |
| BRIGHTNESS: | 350 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10 |
| Lamp Type: | WLED | SIGNAL LNTERFACE: | LVDS |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM035KBH11-09 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - | ||
| Application : |
|
|||
| Typical Features : |
|
|||
| Remarks : | 3 in 1 FPC; Down side FPC (37.00mm lengt | |||
| Screen Size : | 3.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.073×0.219 mm | 0.219×0.219 mm [115PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 70.08×52.56 mm | 72.08×54.56 mm | 76.9×63.9 mm | 4.0±0.2 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| - | - | Without touch controller | 4-wire Resistive Touch | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 40.6g | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 70/70/60/70 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6090K | 16.7M (6-bit + Dithering) | X:0.320; Y:0.335 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 72% | 54% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | COG Built-in NV3035C |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 6S1P | 1 string | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 19.2/21.6V (Typ./Max.) | 20/25mA (Typ./Max.) | 384mW (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | - | 45/65mW (Typ./Max.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Digital RGB (8/24-bit) + SPI, CCIR601/656 | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 54 pins | 0.5 mm | ||||

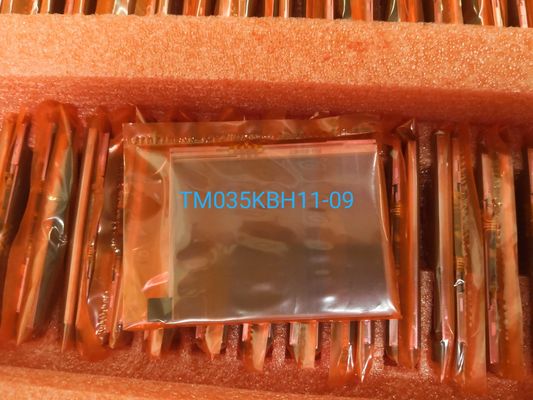

| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 168 pcs / box | 10.617±5% Kgs | 530×350×250 mm (L×W×H) |
