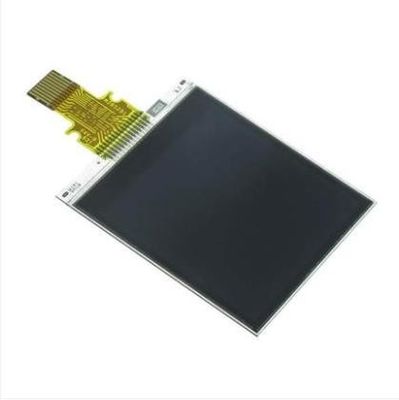

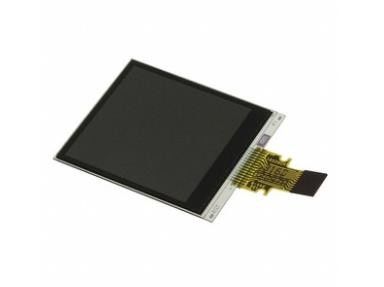

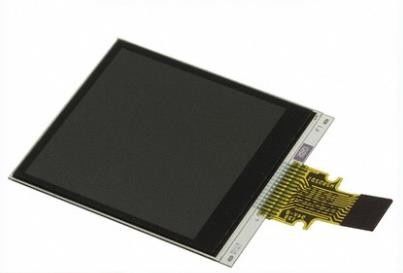

Product Details:
|
| Model: | LS013B7DH06 | Size: | 1.33" |
|---|---|---|---|
| Resolution: | 128(RGB)×128 136PPI | Outline Size: | 26.82(W)×31.3(H) ×0.85(D) Mm |
| Type: | CG-Silicon , LCM | Response Time: | 10/20 (Typ.)(Tr/Td) |
| Touch Screen: | Without | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS013 Series LS013B7DH06 LS013B7DH05 LS013B7DH03 LS013B7DH01
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS013B7DH06 | CG-Silicon , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C | - |
| Panel Size : | 1.33 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 128(RGB)×128 | RGB Vertical Stripe | 0.062×0.186 mm | 0.186×0.186 mm [136PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 23.808×23.808 mm | - | 26.82×31.3 mm | 0.75±0.1 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 1:1 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.25g (Typ.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| - | Reflective | 25:1 (Typ.) (Reflective) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 60/60/60/60 (Typ.)(CR≥2) | - | 10/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7075K | 8 (1-bit) | X:0.300; Y:0.340 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 7% | 10% | 7% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 7% | 5% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Transmittance : | 0.15% (Typ.)(with Polarizer) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 8.5% (Typ.) | |
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 1120 pcs / box | 6.8 Kgs | 528×363×228 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
