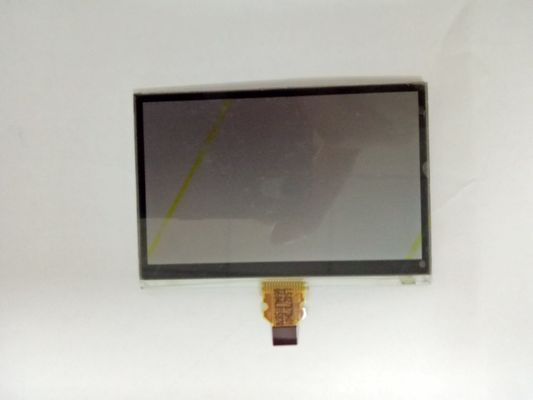

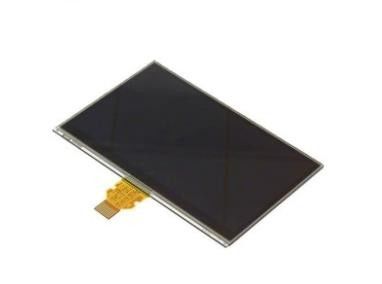

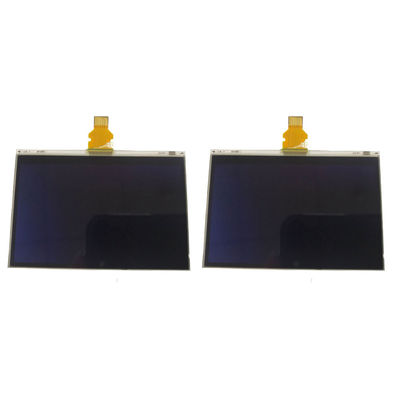

Product Details:
|
| Model: | LS026B8PX02 | Brand: | Sharp |
|---|---|---|---|
| Format: | 240(RGB)×400 [WQVGA] 180PPI | Size: | 2.6 Inch |
| Type: | CG-Silicon , LCM | Light Source: | WLED [4S1P] , W/O Driver |
| Luminance: | 200 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down |
| Power Supply: | 10.0/-5.1V (Typ.)(VDD/GVSS) | Environment: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS026 Series LS026B8PX04 LS026B8PX02
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS026B8PX02 | CG-Silicon , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 60 °C | -20 ~ 70 °C | - |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| D-IC Detail : | Built-in IR3M77 |
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | ASV, Normally Black, Transflective | 260:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | 13/18 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7351K | 262K | X:0.300; Y:0.320 | |
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 1.0/2.0% (Min./Typ.) |
| Panel Size : | 2.6 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 240(RGB)×400, WQVGA | RGB Vertical Stripe | 0.047×0.141 mm | 0.141×0.141 mm [180PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 33.84×56.4 mm | - | 40.8×68.1 mm | 2.3±0.1 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:5 (W : H) | Portrait type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 12.0g | - | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.52/0.04mA (Typ.)(IDD/GISS) | 10.0/-5.1V (Typ.)(VDD/GVSS) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 4-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.3 mm | 35 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 4S1P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20/35mA (Typ./Max.) | TBD | 123mW (Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 400 pcs / box | 11.0 Kgs | 360×525×225 mm (L×W×H) |
LS026B8PX02 supports display 240(RGB)×400 (WQVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 33.84(W)×56.4(H) mm, outline size of 40.8(W)×68.1(H)×2.4(D) mm, net weight of 12.0g. As a ASV, Normally Black, Transflective LCM product, LS026B8PX02 can provides 200 cd/m² display brightness 260:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/18 (Typ.)(Tr/Td) ms., thus presenting a palette of 262K colors. This product adopted 4S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LS026B8PX02 utilizes Parallel RGB (1 ch, 4-bit) as it's signal inputting systerm, which connected by 35 pins FPC with power supply voltage of 10.0/-5.1V (Typ.)
