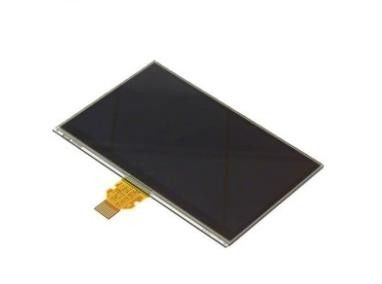

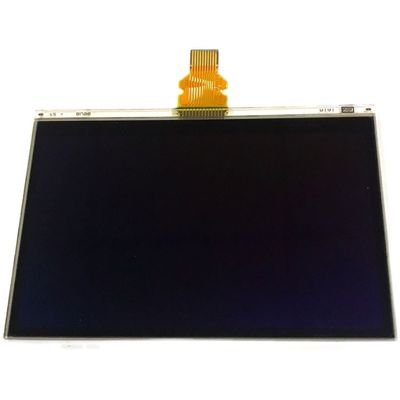

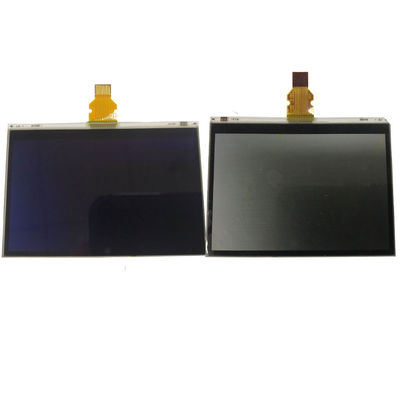

Product Details:
|
| Size: | 2.6" | Name: | LS026B8PX04 |
|---|---|---|---|
| Screen Type: | LCM, CG-Silicon | Outline(mm): | 40.6 × 65.7 (H×V×D) |
| Pixel Number: | 240(RGB)×400 (WQVGA) 180PPI | Luminance: | 180 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥5) Left / Right / Up / Down | Response: | 13/30 (Typ.)(Tr/Td) Ms |
| Touchscreen: | Without | Ratings: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS026 Series LS026B8PX04 LS026B8PX02
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LS026B8PX04 | CG-Silicon , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 60 °C | -20 ~ 70 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 180 (Typ.) | 80/80/80/80 (Typ.)(CR≥5) | 13/30 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ASV, Normally Black, Transflective | 330 : 1 (Typ.) (Transmissive) 10:1 (Typ.) (Reflective) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7435K | 262K | X:0.300; Y:0.315 | |
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | 0.9/1.5% (Min./Typ.) |
| Panel Size : | 2.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 240(RGB)×400 [WQVGA] | RGB Vertical Stripe | 0.141×0.141 [180PPI] | 0.047×0.141 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 33.84(H) × 56.4(V) | - | 40.6(H) × 65.7(V) | 1.47 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 3:5 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 6.00g | - | Hard coating (3H) | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1S5P | Parallel | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 12mA (Typ.) | ||||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 8 pins | 1 pcs | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 10.6/-5.3V (Typ.)(VDD/GVSS) | 0.52/0.05mA (Typ.)(IDD/GISS) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 4-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.3 mm | 29 pins | 1 pcs | ||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 160 pcs / box | - | - |
