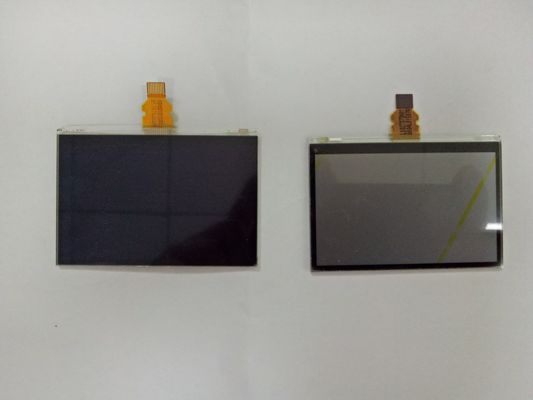

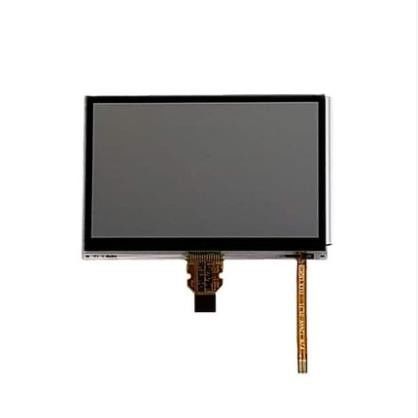

Product Details:
|
| Size: | 2.7" | Type: | CG-Silicon, LCM |
|---|---|---|---|
| Model: | LS027B4DH01 | Resolution: | 400×240, WQVGA, 172PPI |
| Display Area: | 58.8(W)×35.28(H) Mm | Outline Size: | 62.8(W)×42.82(H) Mm |
| Viewing Angle: | 60/60/60/60 (Min.)(CR≥2) | Contrast Ratio: | 14:1 (Typ.) (RF) |
| Input Voltage: | 5.0/5.0V (Typ.)(VDD/VDDA) | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS027 Series LS027B7DH01 LS027B4DH01

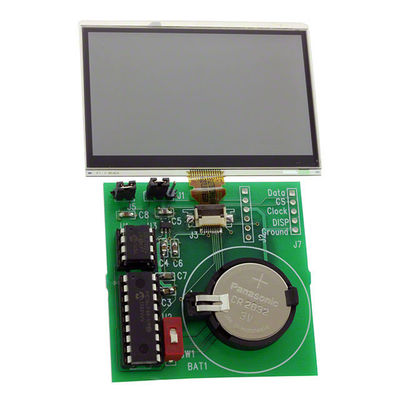

| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LS027B4DH01 | CG-Silicon , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | - |
| Panel Size : | 2.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 400×240 [WQVGA] | Rectangle | 0.147×0.147 [172PPI] | 0.147×0.147 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 58.8(H) × 35.28(V) | - | 62.8(H) × 42.82(V) | 1.53 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 9.40g (Typ.) | - | Hard coating (3H) | ||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| - | 60/60/60/60 (Min.)(CR≥2) | 10/20 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Reflective | 14:1 (Typ.) (Reflective) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6802K | Monochrome (1-bit) | X:0.307; Y:0.330 | |
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | 18% (Typ.) |
| Reverse Scan : | No |
|---|---|
| Power Consumption : | 50/175uW (Typ.)(display/update) |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0/5.0V (Typ.)(VDD/VDDA) | - | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | SPI | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 10 pins | 1 pcs | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 400 pcs / box | - | 578×382×153 mm (L×W×H) |
LS027B4DH01 supports display 400×240 (WQVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 58.8(W)×35.28(H) mm, outline size of 62.8(W)×42.82(H) mm, with surface treament of Hard coating (3H), net weight of 9.40g (Typ.). As a TN, Normally White, Reflective LCM product, LS027B4DH01 can provides , 14:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Min.)(CR≥2) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of Monochrome colors. This product have no backlight. LS027B4DH01 utilizes SPI as it's signal inputting systerm, which connected by 10 pins FPC with power supply voltage of 5.0/5.0V (Typ.)
