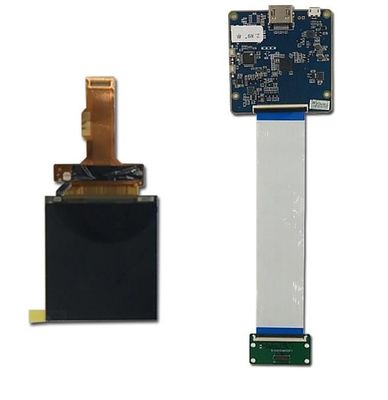

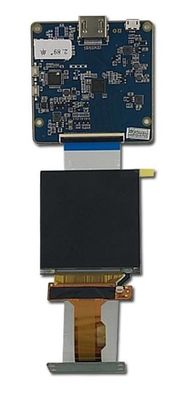

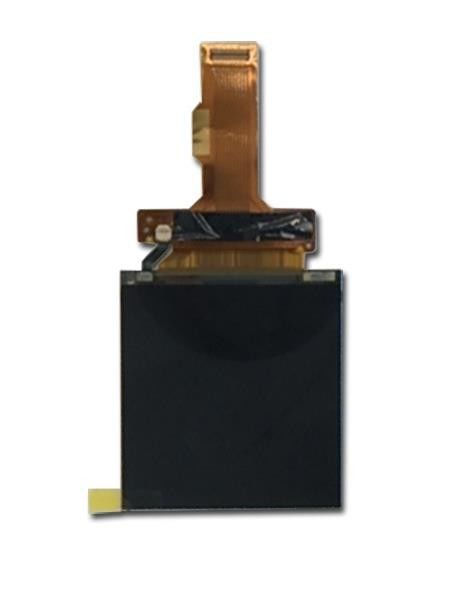

LS029B3SX02 Sharp 2.9INCH 1440×1440RGB 300CD/M2 INDUSTRIAL LCD DISPLAY

LS029B3SX02 Sharp 2.9INCH 1440×1440RGB 300CD/M2 INDUSTRIAL LCD DISPLAY
LS029B3SX02 Sharp 2.9INCH 1440×1440RGB 300CD/M2 INDUSTRIAL LCD DISPLAY LS029B3SX02 Sharp 2.9INCH 1440×1440RGB 300CD/M2 INDUSTRIAL LCD DISPLAY LS029B3SX02 Sharp 2.9INCH 1440×1440RGB 300CD/M2 INDUSTRIAL LCD DISPLAY

Large Image :  LS029B3SX02 Sharp 2.9INCH 1440×1440RGB 300CD/M2 INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LS029B3SX02
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 30000PCS
Contact Now

LS029B3SX02 Sharp 2.9INCH 1440×1440RGB 300CD/M2 INDUSTRIAL LCD DISPLAY

Description
Size: 2.9 Inch Pixel Number: 1440(RGB)×1440 705PPI
Active Area(mm): 51.84 × 51.84 (H×V) Luminance: 300 Cd/m² (Typ.)
Viewing Angle: 80/80/80/80 (Min.) Mass: 7.00g (Typ.)
Voltage Supply: 1.8/5.5/-5.5V (Typ.)(VDDI/VSP/VSN) Ratings: Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
Highlight:

CCFL LVDS Industrial LCD Panel

,

QVGA Sharp TFT LCD Display

LS029 Series LS029B3SX02 LS029B3SX01 LS029B3SX05 LS029B3SX04







Sharp LS029B3SX02 Application Details

Basic Info :
Panel Brand
SHARP
LS029B3SX02Panel Model
Diagonal Size
2.9"
Application

CG-Silicon , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 60 °C
Storage Temp.
-30 ~ 70 °C
RoHS State

-Vibration Rating



Sharp LS029B3SX02 Mechanical Details

Pixel Features :
Pixel Format
1440(RGB)×1440
Dot Pitch
0.012×0.036 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.036×0.036 mm (H×V) [705PPI]
Mechanical Size :
Display Area
51.84×51.84 mm (H×V)
Bezel Area
-
Outline Dim.
54.24×59.02 mm (H×V)
Outline Depth
1.37±0.14 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
1:1 (H:V)
Shape Style

Other Features :
Weight
7.00g (Typ.)
Surface
-



Sharp LS029B3SX02 Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
1100:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Optical Mode
New Mode2, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
10 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.290; Wy:0.315
Color Numbers
16.7M (8-bit)
Color Temperature
8139K
Uniformity
1.28 (Min.)(9 points)
1931 Color Gamlt :
NTSC Ratio
74%
sRGB
90% coverage
Adobe RGB
75% coverage
DCI-P3
76% coverage
Rec.2020
56% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Sharp LS029B3SX02 Electronics Details

Frame Frequency :
120Hz
Reverse Scan :
No
D-IC Detail :
COG Built-in R63423



Sharp LS029B3SX02 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
4S2P
Life Time
-
Replacement
-
Lamp Shape
2 strings
Position
Edge light type
Lamp Electrical :
Voltage Input
11.6V (Typ.)
Current Input
11/20mA (Typ./Max.)
Consumption
255.2mW (Typ.)
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
No



Sharp LS029B3SX02 Interface Detail

Signal Systerm :
MIPI (2 ch, 4 data lanes)
Logic Voltage
-
Signal Electrical :
Voltage Input
1.8/5.5/-5.5V (Typ.)(VDDI/VSP/VSN)
Current Input
33/20/12mA (Typ.)(IDDI/ISP/ISN)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JAE
WP7B-S040VA1
0.4 mm
40 pins
1 pcs


LS029B3SX02 Sharp 2.9INCH 1440×1440RGB 300CD/M2 INDUSTRIAL LCD DISPLAY 0
