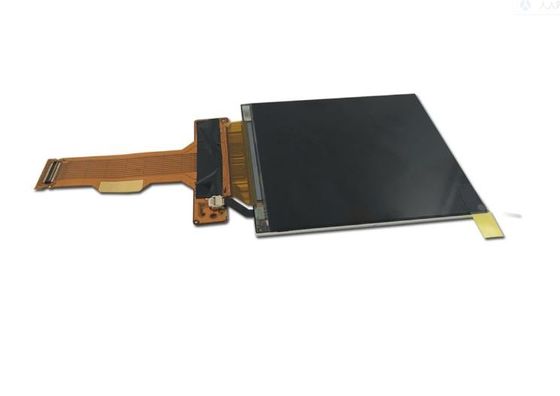

LS029B3SX05 Sharp 2.9" LCM 1440×1440RGB INDUSTRIAL LCD DISPLAY

LS029B3SX05 Sharp 2.9" LCM 1440×1440RGB INDUSTRIAL LCD DISPLAY
LS029B3SX05 Sharp 2.9" LCM 1440×1440RGB INDUSTRIAL LCD DISPLAY   LS029B3SX05 Sharp 2.9" LCM 1440×1440RGB INDUSTRIAL LCD DISPLAY   LS029B3SX05 Sharp 2.9" LCM 1440×1440RGB INDUSTRIAL LCD DISPLAY

Large Image :  LS029B3SX05 Sharp 2.9" LCM 1440×1440RGB INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LS029B3SX05
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS
Contact Now

LS029B3SX05 Sharp 2.9" LCM 1440×1440RGB INDUSTRIAL LCD DISPLAY

Description
Size: 2.9 Inch Model: LS029B3SX05
Brand: Sharp Brightness: 150 Cd/m² (Typ.)
Outline Size: 54.24(W)×59.02(H) ×1.51(D) Mm Resolution: 1440(RGB)×1440, 705PPI
Touch Screen: Without Environment: Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
High Light:

CCFL LVDS Industrial LCD Panel

,

QVGA Sharp TFT LCD Display

LS029 Series LS029B3SX05 LS029B3SX04 LS029B3SX02 LS029B3SX01



Sharp LS029B3SX05 Application Details

Basic Detail :
Manufacturer
SHARP
LS029B3SX05Model Name
Panel Type
CG-Silicon , LCM
Another Name
-
Panel Size
2.9 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 60 °C
ST Temperature
-30 ~ 70 °C
RoHS

-Vibration Level



Sharp LS029B3SX05 Optical Details

Basic Detail :
Luminance
150 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
10 (Typ.)(Tr+Td) ms
Viewing Angle
-
Operating Mode
SFR, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.292; Wy:0.314
Support Color
16.7M (8-bit)
Color Temperature
8015K
White Variation
1.43 (Min.)(9 points)
1931 Color Gamlt :
NTSC Ratio
70%
sRGB
96% coverage
Adobe RGB
73% coverage
DCI-P3
72% coverage
Rec.2020
52% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Sharp LS029B3SX05 Mechanical Details

Pixel Features :
Number of Pixel
1440(RGB)×1440
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.012×0.036 mm
Pixel Pitch(W×H)
0.036×0.036 mm [705PPI]
Physical Size :
Active Viewing
51.84(W)×51.84(H) mm
Overall Dim.
54.24(W)×59.02(H) mm
Bezel Opening
-
Overall Depth
1.37±0.14 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
1:1
Shape Style

Other Detail :
Mass
7.00g (Typ.)
Surface
-



Sharp LS029B3SX05 Interface Detail

Signal Electrical :
Input Current
80/17/16mA (Typ.)(IDDI/AIDD/AIEE)
Input Voltage
1.8/5.5/-5.5V (Typ.)(VDDI/AVDD/AVEE)
Consumption
-
Signal Interface
MIPI (2 ch, 4 data lanes)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
WP7B-S040VA1
0.4 mm
40 pins
1 pcs




Sharp LS029B3SX05 Electronics Details

Refresh Rate :
120Hz Reverse Scan :
No
Driver IC :
COG Built-in NT57860



Sharp LS029B3SX05 Packing Details

Package Box : Amount Size (L×W×H) Weight
480 pcs / box - -


 LS029B3SX05 supports display 1440(RGB)×1440 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 705 PPI. As for mechanical detail, it features active area of 51.84(W)×51.84(H) mm, outline size of 54.24(W)×59.02(H)×1.51(D) mm, net weight of 7.00g (Typ.). As a SFR, Normally Black, Transmissive LCM product, LS029B3SX05 can provides 150 cd/m² display brightness 600:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 10 (Typ.)

LS029B3SX05 Sharp 2.9" LCM 1440×1440RGB INDUSTRIAL LCD DISPLAY   1
