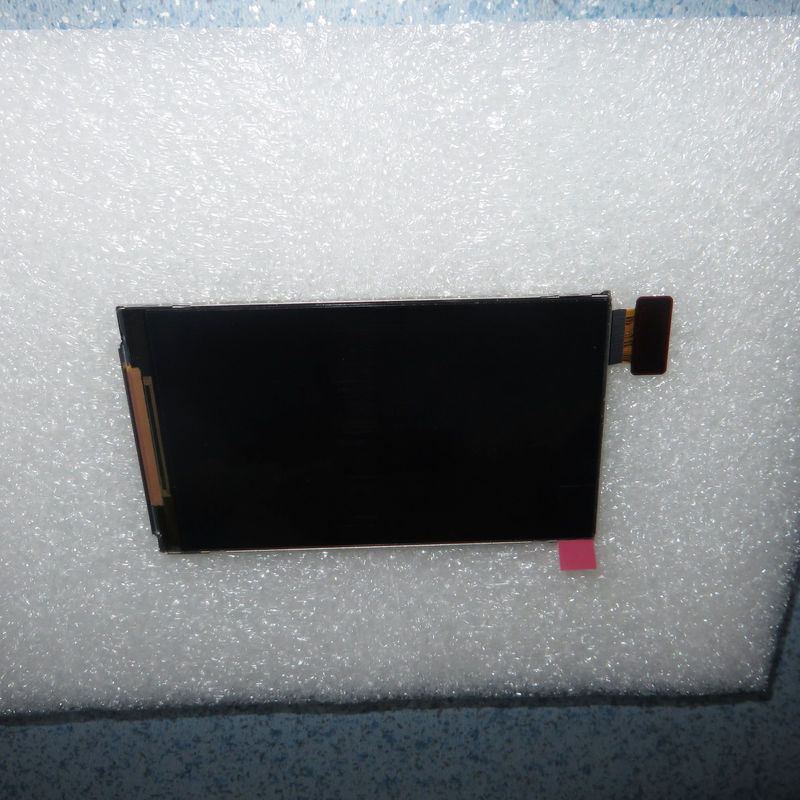

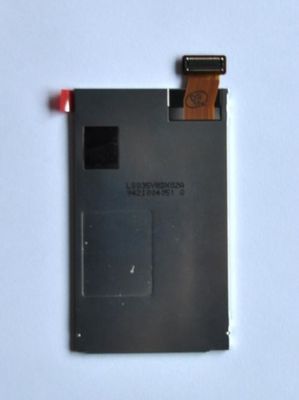

LS035Y8DX04 Sharp 3.5INCH 480×800RGB 400cd/m² INDUSTRIAL LCD DISPLAY

LS035Y8DX04 Sharp 3.5INCH 480×800RGB 400cd/m² INDUSTRIAL LCD DISPLAY
LS035Y8DX04 Sharp 3.5INCH 480×800RGB 400cd/m² INDUSTRIAL LCD DISPLAY LS035Y8DX04 Sharp 3.5INCH 480×800RGB 400cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LS035Y8DX04 Sharp 3.5INCH 480×800RGB 400cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LS035Y8DX04
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 320 pcs / box 8 Kgs 360×525×225 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 300PCS
Contact Now

LS035Y8DX04 Sharp 3.5INCH 480×800RGB 400cd/m² INDUSTRIAL LCD DISPLAY

Description
Size: 3.5 Inch Luminance: 400 Cd/m² (Typ.)
Viewing Angle: 80/80/80/80 (Typ.)(CR≥5) Left / Right / Up / Down Signal Interface: TTL
Pixel Format: 480(RGB)×800 [WVGA] 268PPI Lamp Type: WLED
Voltage Supply: 1.8/2.8V (Typ.)(VDDIO/VCC) Max. Ratings: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
Highlight:

CCFL LVDS Industrial LCD Panel

,

QVGA Sharp TFT LCD Display

LS035 Series LS035Y8DX04 LS035Y8DX02A LS035Y8DX06 LS035Y8DX04A



Sharp LS035Y8DX04 Application Details

Basic Information :
Brand
SHARP
LS035Y8DX04LS035Y8DX04 Sharp 3.5INCH 480×800RGB 400cd/m² INDUSTRIAL LCD DISPLAY 0 1 CompatibleModel
Type
CG-Silicon , LCM
Used For

3.5 inchScreen Size
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

-Vibration



Sharp LS035Y8DX04 Mechanical Details

Pixel Features :
Resolution
480(RGB)×800, WVGA
Dot Pitch(mm)
0.0315×0.0945 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.0945×0.0945 (H×V) [268PPI]
Mechanical Size :
Active Area(mm)
45.36(H) × 75.6(V)
Bezel Area(mm)
46.36(H) × 76.6(V)
Outline Dim.(mm)
51.16(H) × 87.47(V)
Depth(mm)
1.74/3.04 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
3:5 (H:V)
Orientation
Portrait type
Other Spec :
Weight
14.9g (Typ.)
Treatment
-



Sharp LS035Y8DX04 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
900:1 (Typ.) (Transmissive) 10:1 (Typ.) (Reflective)
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Display Mode
ASV, Normally Black, Transflective
Best View on
Symmetry
Response(ms)
11/24 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.290; Wy:0.310
Display Colors
16.7M (8-bit)
Color Temperature
8266K
White Uniformity
1.25 (Max.)(9 points)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
3D Type
-
Reflectance
1.5% (Typ.)



Sharp LS035Y8DX04 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No
Driver IC :
Built-in R63302



Sharp LS035Y8DX04 Interface Detail

Signal Electrical :
Voltage Supply
1.8/2.8V (Typ.)(VDDIO/VCC)
Current Supply
20.5mA (Typ.)(IDD+ICC)
Signal Type :
Parallel RGB (1 ch, 8-bit) + SPI
Logic Voltage
0≤VIL≤0.2VDDIO; 0.8VDDIO≤VIH≤VDDIO
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


0.3 mm
49 pins
1 pcs



Sharp LS035Y8DX04 Backlight Details

Backlight Features :
Type
WLED
Quantity
7S1P
Position
Edge light type
Replacement
-
Shape
1 string
Life Time
-
Lamp Electrical :
Voltage Supply
21.7V (Typ.)
Current Supply
20mA (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



Sharp LS035Y8DX04 Packing Details

Package Box : Quantity Weight Box Size
320 pcs / box 8 Kgs 360×525×225 mm (L×W×H)



FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
