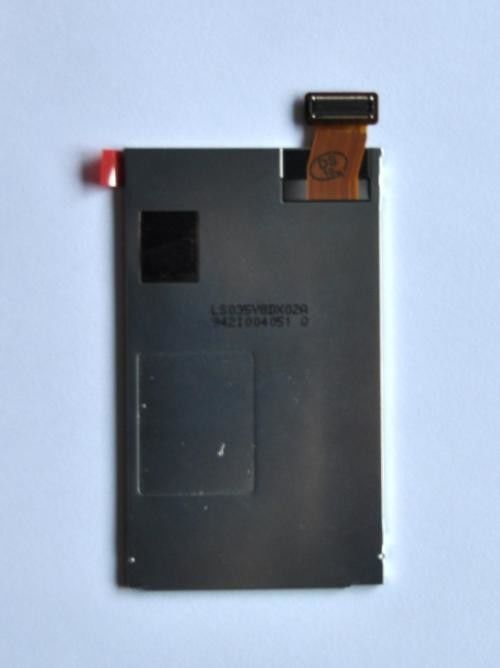

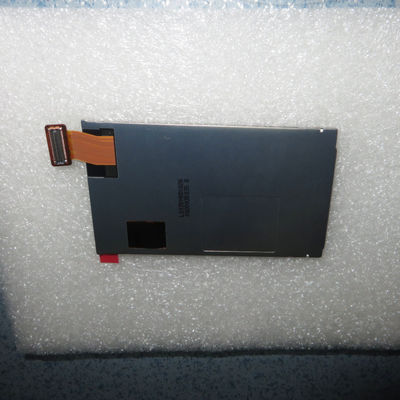

Product Details:
|
| Model: | LS035Y8DX04A | Size: | 3.5 Inch |
|---|---|---|---|
| Luminance: | 400 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥5) Left / Right / Up / Down |
| Pixel Format: | 480(RGB)×800 [WVGA] 268PPI | Lamp Type: | WLED |
| Signal Interface: | TTL | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS035 Series LS035Y8DX04A LS035Y8DX04 LS035Y8DX02A LS035Y8DX06
| Basic Information : | Brand | SHARP | Model | LS035Y8DX04A 1 Compatible |
|---|---|---|---|---|
| Type | LCM CG-Silicon | Used For | ||
| Screen Size | 3.5" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 480(RGB)×800, WVGA | Dot Pitch(mm) | 0.0315×0.0945 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.0945×0.0945 (H×V) [268PPI] | |
| Mechanical Size : | Active Area(mm) | 45.36(H) × 75.6(V) | Bezel Area(mm) | 46.36(H) × 76.6(V) |
| Outline Dim.(mm) | 51.16(H) × 87.47(V) | Depth(mm) | 1.74/3.04 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 3:5 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 14.9g (Typ.) | Treatment | - |
| Signal Electrical : | Voltage Supply | 1.8/2.8V (Typ.)(VDDIO/VCC) | Current Supply | 20.5mA (Typ.)(IDD+ICC) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 8-bit) + SPI | Signal Voltage | 0≤VIL≤0.2VDDIO; 0.8VDDIO≤VIH≤VDDIO | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 49 pins | 0.3 mm | ||||
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) 10:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Display Mode | ASV, Normally Black, Transflective | |
| Best View on | Symmetry | Response(ms) | 11/24 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.290; Y:0.310 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 8266K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Type | - | Reflectance | 1.5% (Typ.) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | Built-in R63302 |
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 7S1P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 21.7V (Typ.) | Current Supply | 20mA (Typ.) | ||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 320 pcs / box | 8 Kgs | 360×525×225 mm (L×W×H) |
