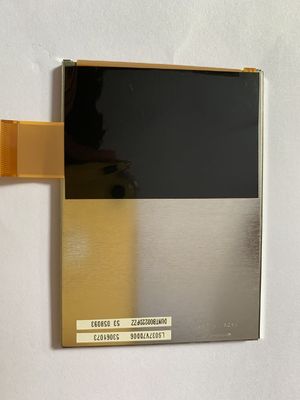

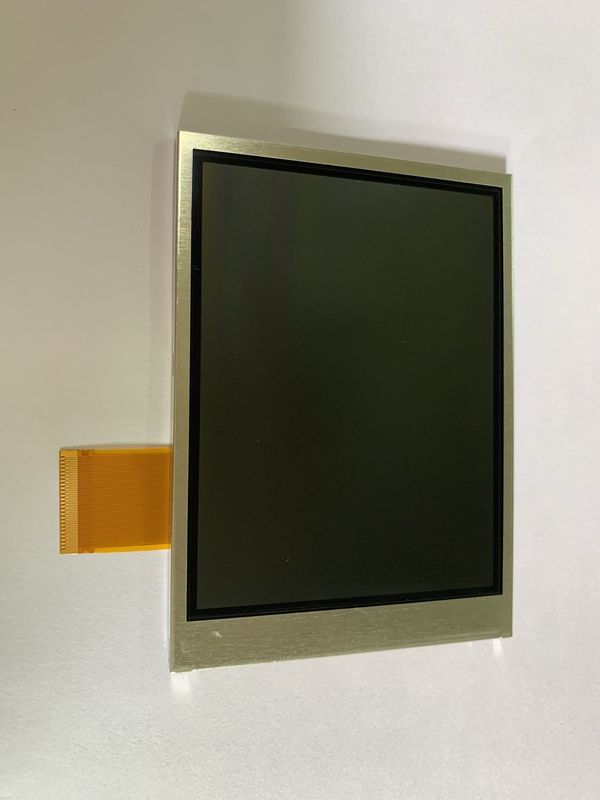

3.5" LCM 480×800RGB 400CD/M2 Sharp TFT LCD Display LS035Y8DX06

3.5" LCM 480×800RGB 400CD/M2 Sharp TFT LCD Display LS035Y8DX06
3.5" LCM 480×800RGB 400CD/M2 Sharp TFT LCD Display LS035Y8DX06 3.5" LCM 480×800RGB 400CD/M2 Sharp TFT LCD Display LS035Y8DX06

Large Image :  3.5" LCM 480×800RGB 400CD/M2 Sharp TFT LCD Display LS035Y8DX06

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LS035Y8DX06
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 320 pcs / box 8.0 KGs 360×525×225 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 1000PCS
Contact Now

3.5" LCM 480×800RGB 400CD/M2 Sharp TFT LCD Display LS035Y8DX06

Description
Model: LS035Y8DX06 Size: 3.5"
Luminance: 400 Cd/m² (Typ.) Pixel Format: 480(RGB)×800 [WVGA] 268PPI
Viewing Angle: 80/80/80/80 (Typ.)(CR≥5) Left / Right / Up / Down Light Source: WLED [7S1P] , W/O Driver
Power Supply: 1.8/2.8V (Typ.)(VDDIO/VCC) Environment: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
Highlight:

CCFL LVDS Industrial LCD Panel

,

QVGA Sharp TFT LCD Display

Sharp LS035Y8DX06 Application Details

Basic Info :
Panel Brand
SHARP
LS035Y8DX06Panel Model
Diagonal Size
3.5"
Application

CG-Silicon , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

-Vibration Rating



Sharp LS035Y8DX06 Optical Details

Basic Information :
Brightness
400 cd/m² (Typ.)
Contrast Ratio
900:1 (Typ.) (Transmissive) 10:1 (Typ.) (Reflective)
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Optical Mode
ASV, Normally Black, Transflective
Viewing Direction
Symmetry
Response Time
11/24 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.290; Wy:0.310
Color Numbers
16.7M (8-bit)
Color Temperature
8266K
Uniformity
1.25 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
72% coverage
Adobe RGB
54% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
3D Type
-
Reflectance
1.5% (Typ.)



Sharp LS035Y8DX06 Mechanical Details

Pixel Features :
Pixel Format
480(RGB)×800, WVGA
Dot Pitch
0.0315×0.0945 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.0945×0.0945 mm (H×V) [268PPI]
Mechanical Size :
Display Area
45.36×75.6 mm (H×V)
Bezel Area
46.36×76.6 mm (H×V)
Outline Dim.
51.16×87.47 mm (H×V)
Outline Depth
1.74/3.17 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Portrait type
Aspect Ratio
3:5 (H:V)
Shape Style

Other Features :
Weight
14.9g (Typ.)
Surface
-





Sharp LS035Y8DX06 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No
D-IC Detail :
Built-in R63302



Sharp LS035Y8DX06 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 8-bit) + SPI
Logic Voltage
0≤VIL≤0.2VDDIO; 0.8VDDIO≤VIH≤VDDIO
Signal Electrical :
Voltage Input
1.8/2.8V (Typ.)(VDDIO/VCC)
Current Input
20.5mA (Typ.)(IDD+ICC)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.3 mm
49 pins
1 pcs




Sharp LS035Y8DX06 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
7S1P
Life Time
-
Replacement
-
Lamp Shape
1 string
Position
Edge light type
Lamp Electrical :
Voltage Input
21.7V (Typ.)
Current Input
20mA (Typ.)
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
No



Sharp LS035Y8DX06 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
320 pcs / box 8.0 KGs 360×525×225 mm

LS035 Series LS035Y8DX06 LS035Y8DX04A LS035Y8DX04 LS035Y8DX02A

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
