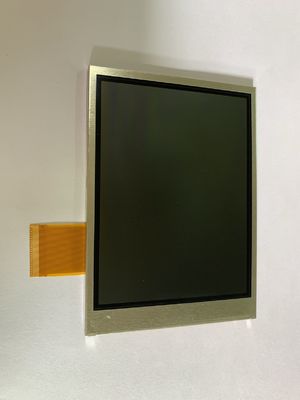

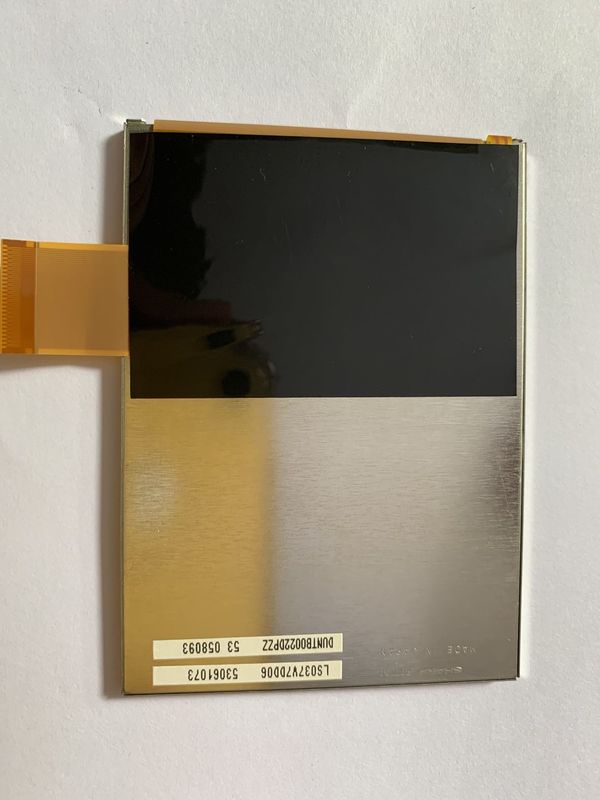

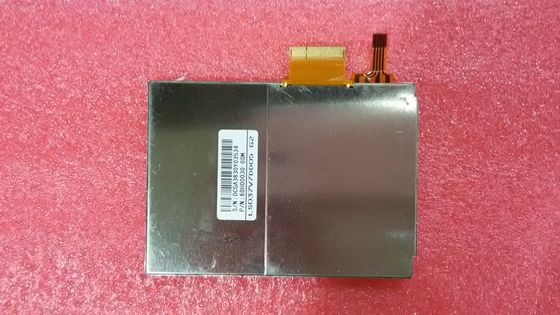

Product Details:
|
| Size: | 3.7" | Model: | LS037V7DD06 |
|---|---|---|---|
| Brightness: | 100 Cd/m² (Typ.) | Resolution: | 480(RGB)×640, VGA, 217PPI |
| Viewing Angle: | 40/40/40/40 (Typ.)(CR≥2) Left / Right / Up / Down | Display Area: | 56.16(W)×74.88(H) Mm |
| Panel Type: | CG-Silicon, LCM | Lamp Type: | WLED |
| Best View On: | 6 O'clock | Environment: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS037 Series LS037V7DD06 LS037V7DD05 LS037V7DD06R
| Basic Detail : | Manufacturer | SHARO | Model Name | LS037V7DD06 |
|---|---|---|---|---|
| Panel Type | CG-Silicon , LCM | Another Name | - | |
| Panel Size | 3.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 100 cd/m² (Typ.) | Contrast Ratio | 100 : 1 (Typ.) (Transmissive) 5:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 30/50 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 40/40/40/40 (Typ.)(CR≥2) | Operating Mode | TN, Normally White, Transflective | |
| Color Performance : | Chromaticity | Wx:0.290; Wy:0.330 | Support Color | 262K (6-bit) |
| Color Temperature | 7816K | White Uniformity | - | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Tech | - | Reflectance | 4/6% (Min.Typ.) |
| Pixel Features : | Number of Pixel | 480(RGB)×640 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.039×0.117 mm | Pixel Pitch(W×H) | 0.117×0.117 mm [217PPI] | |
| Physical Size : | Active Viewing | 56.16(W)×74.88(H) mm | Overall Dim. | 65(W)×90(H) mm |
| Bezel Opening | 59.8(W)×78.5(H) mm | Overall Depth | 3.35 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 3:4 | Shape Style | ||
| Other Detail : | Mass | 39.0g (Typ.) | Surface | - |
| Signal Electrical : | Input Current | 5.5/2.3/0.7/-0.6/-0.1mA (Typ.)(ISHA/ISHD/IVDD/IVSSD/IGVSS) | Input Voltage | 5.0/3.3/8.0/-4.0/-8.0V (Typ.)(VSHA/VSHD/VDD/VSSD/GVSS) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | GND≤VIL≤0.2VSHD; 0.8VSHD≤VIH≤VSHD | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 51 pins | |||||
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | - | |
| Lamp Electrical : | Input Current | 15/20mA (Typ./Max.) | Input Voltage | 32.4/37.8V (Typ./Max.) | ||
| Consumption | 486mAW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 100 pcs / box | 575×360×225 mm | 7.9 Kgs |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
