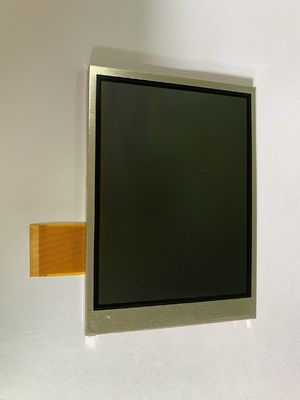

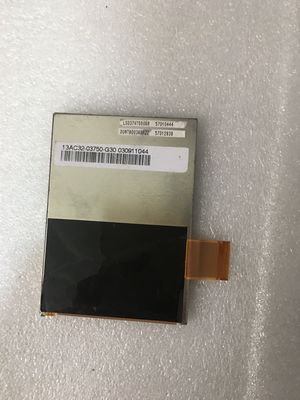

Product Details:
|
| Model: | LS037V7DD06R | Brightness: | 100 Cd/m² |
|---|---|---|---|
| Resolution: | 480(RGB)×640, VGA, 217PPI | Panel Type: | CG-Silicon , LCM |
| Bezel Opening: | 59.8(W)×78.5(H) Mm | Outline Size: | 65(W)×90(H) Mm |
| Size: | 3.7" | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 51 Pins FPC |
| Frequency: | 60Hz | Environment: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||

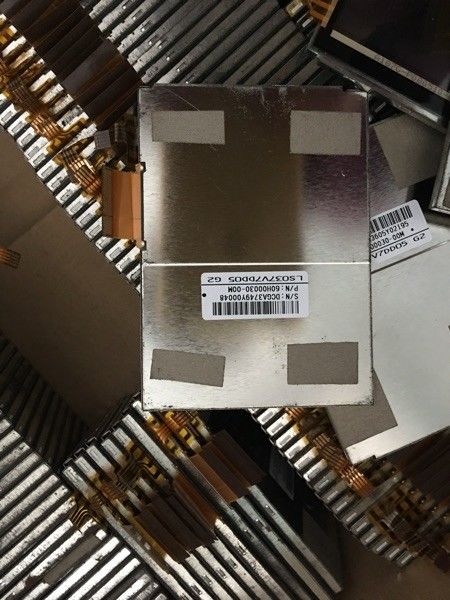

LS037 Series LS037V7DD06R LS037V7DD06 LS037V7DD05
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS037V7DD06R | CG-Silicon , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -10 ~ 60 °C | -20 ~ 70 °C | - |
| Screen Size : | 3.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×640, VGA | RGB Vertical Stripe | 0.039×0.117 mm | 0.117×0.117 mm [217PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 56.16×74.88 mm | 59.8×78.5 mm | 65×90 mm | 3.35 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:4 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 39.0g | - | - | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0/3.3/8.0/-4.0/-8.0V (Typ.)(VSHA/VSHD/VDD/VSSD/GVSS) | 5.5/2.3/0.7/0.6/0.1mA (Typ.)(ISHA/ISHD/IDD/ISSD/GISS) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VSHD; 0.8VSHD≤VIH≤VSHD | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 51 pins | 0.3 mm | ||||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 100 cd/m² (Typ.) | TN, Normally White, Transflective | 100:1 (Typ.) (Transmissive) 5:1 (Typ.) (Reflective) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 40/40/40/40 (Typ.)(CR≥10) | 30/50 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 9480K | 262K (6-bit) | X:0.280; Y:0.300 | |
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 4.0/6.0% (Min./Typ.) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 1 string | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 32.4/37.8V (Typ./Max.) | 15/20mA (Typ./Max.) | 486mW (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 100 pcs / box | 7.9 Kgs | 575×360×225 mm (L×W×H) |
LS037V7DD06R supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 56.16(W)×74.88(H) mm, outline size of 65(W)×90(H) mm, viewing area size of 59.8(W)×78.5(H) mm, net weight of 39.0g. As a TN, Normally White, Transflective LCM product, LS037V7DD06R can provides 100 cd/m² display brightness 100:1 transimissive contrast ratio, 5:1 (Typ.) reflective contrast ratio, 40/40/40/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LS037V7DD06R utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 51 pins FPC with power supply voltage of 5.0/3.3/8.0/-4.0/-8.0V (Typ.)
