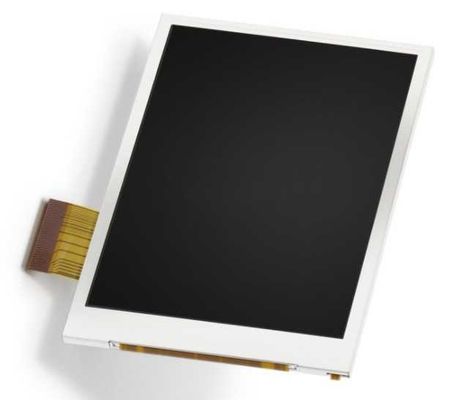

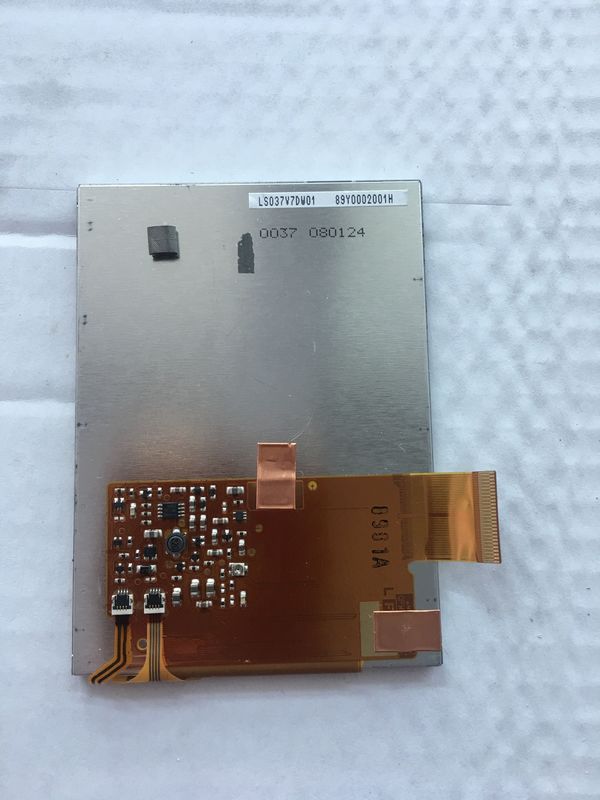

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LS037V7DW01 |
|---|---|---|---|
| Size: | 3.7" | Lamp Type: | WLED |
| Panel Type: | CG-Silicon , LCM | Brightness: | 165 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥5) Left / Right / Up / Down | Display Area: | 56.16(W)×74.88(H) Mm |
| Best View On: | Symmetry | Environment: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS037 Series LS037V7DW01 LS037V7DW06 LS037V7DW05 LS037V7DW03B LS037V7DW03
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS037V7DW01 | CG-Silicon , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -10 ~ 60 °C | -20 ~ 70 °C | - |
| Panel Size : | 3.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 480(RGB)×640, VGA | RGB Vertical Stripe | 0.039×0.117 mm | 0.117×0.117 mm [217PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 56.16×74.88 mm | 59.8×78.5 mm | 65×89.2 mm | 4.4/6.4 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:4 (W : H) | Portrait type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| - | Without touch controller | - | 4-wire Resistive Touch | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 48.0g (Typ.) | Hard coating (3H) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 45/75mA (Typ./Max.)(ISHD) | 3.3V (Typ.)(VSHD) | - | ||||
| Voltage for Display Signals : | GND≤VIL≤0.2VSHD; 0.8VSHD≤VIH≤VSHD | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.3 mm | 51 pins | ||||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 165 cd/m² (Typ.) | Normally Black, Transflective | 200:1 (Typ.) (Transmissive) 2:1 (Typ.) (Reflective) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥5) | Symmetry | 15/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 262K (6-bit) | X:0.310; Y:0.330 | |
| Luminance Variation : | 1.67 (Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 2/4% (Min.Typ.) | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 16/20mA (Typ./Max.) | 27.9/31.5V (Typ./Max.) | 446.4/630mW (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | |||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 100 pcs / box | 8.6 Kgs | 575×360×225 mm (L×W×H) |
