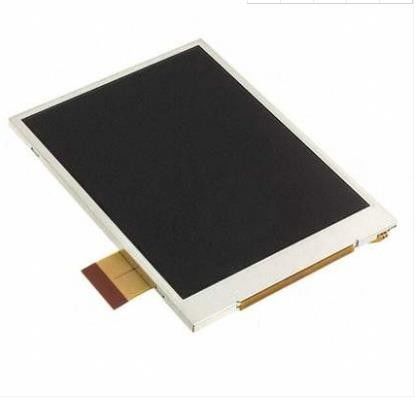

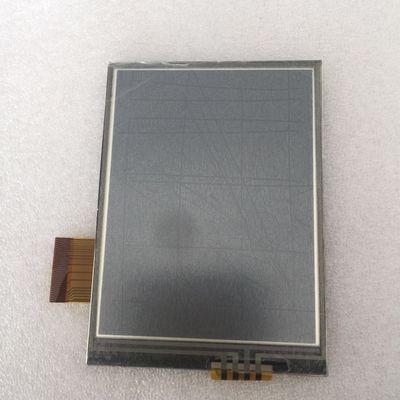

Product Details:
|
| Size: | 3.7 Inch | Luminance: | 200 Cd/m² (Typ.) |
|---|---|---|---|
| Pixel Number: | 480(RGB)×640 (VGA) 217PPI | Model Name: | LS037V7DW03 |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥5) Left / Right / Up / Down | Screen Type: | LCM, CG-Silicon |
| Signal Interface: | TTL | Outline(mm): | 65 × 89.2 (H×V×D) |
| Voltage Supply: | 3.3V (Typ.)(VSHD) | Ratings: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS037 Series LS037V7DW03 LS037V7DW01 LS037V7DW06 LS037V7DW05 LS037V7DW03B
| Basic Information : | Manufacturer | Panel Model 2 Compatible | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LS037V7DW03 | CG-Silicon , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 60 °C | -20 ~ 70 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 200 (Typ.) | 80/80/80/80 (Typ.)(CR≥5) | 15/20 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ASV, Normally Black, Transflective | 200 : 1 (Typ.) (Transmissive) 2:1 (Typ.) (Reflective) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6963K | 262K (6-bit) | X:0.300; Y:0.350 | |
| White Variation : | 1.67 (Max.)(9 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | 2/4% (Min.Typ.) | |
| Panel Size : | 3.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480(RGB)×640 [VGA] | RGB Vertical Stripe | 0.117×0.117 [217PPI] | 0.039×0.117 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 56.16(H) × 74.88(V) | 59.8(H) × 78.5(V) | 65(H) × 89.2(V) | 3.6 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 3:4 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 38.0g (Typ.) | - | - | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 7S1P | 1 string | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 27.9/31.5V (Typ./Max.) | 16/20mA (Typ./Max.) | 446.4/630mW (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VSHD) | 45/75mA (Typ./Max.)(ISHD) | - | ||||
| Voltage for Display Signals : | GND≤VIL≤0.2VSHD; 0.8VSHD≤VIH≤VSHD | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.3 mm | 51 pins | 1 pcs | ||||

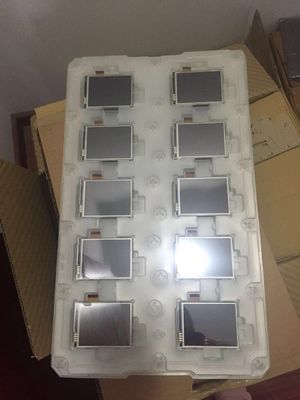

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 100 pcs / box | TBD | 575×360×225 mm (L×W×H) |
