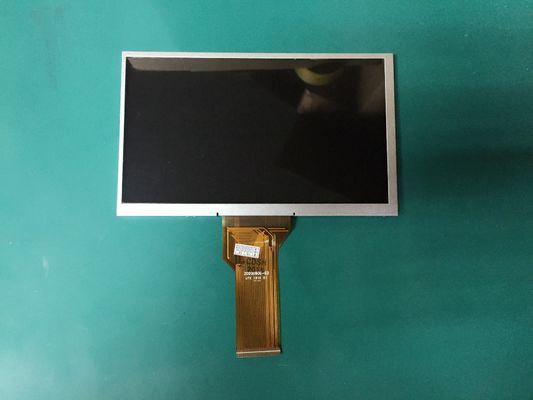

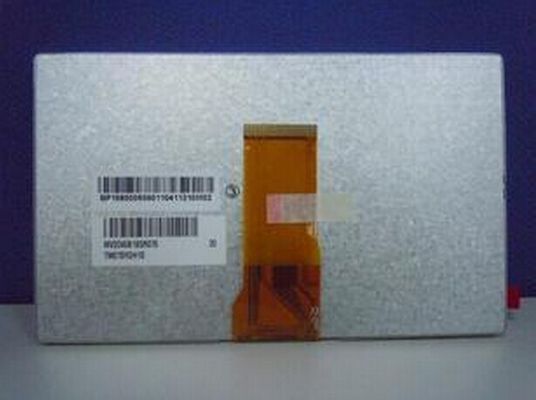

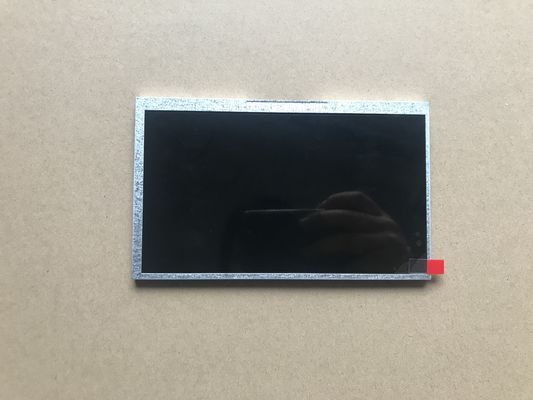

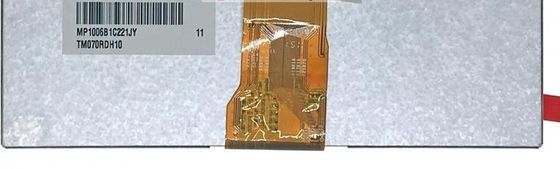

TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY
TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM070RDH10-11
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 3000PCS
Contact Now

TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM070RDH10-11 BRAND: TIANMA
SIZE: 7.0INCH RESOLUTION: 800(RGB)×480, WVGA, 134PPI
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10) BRIGHTNESS: 350 Cd/m² (Typ.)
TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

QVGA TIANMA LCD Panel

,

SVGA TIANMA LCD Panel

TIANMA TM070RDH10-11 Application Features

Basic Information : Brand Model Type Model Alias
  TM070RDH10-11 a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  -20 ~ 70 °C -30 ~ 80 °C -
Designed For :




Specific Features :





Remarks : 80.15mm length FPC



TIANMA TM070RDH10-11 Mechanical Features

Panel Size : 7.0 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
800(RGB)×480, WVGA RGB Vertical Stripe 0.0642×0.1790 mm 0.1926×0.1790 mm [134PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
154.08×85.92 mm 157.08×89.39 mm 164.9×100 mm 5.7±0.3 mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:9 (W : H) Landscape type
Fixation : Without
Other Features : Panel Cover Weight Surface
- 160g (Typ.) Antiglare



TIANMA TM070RDH10-11 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
350 cd/m² (Typ.) TN, Normally White, Transmissive 500:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
70/70/50/70 (Typ.)(CR≥10) 12 o'clock 25 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6371K 262K/16.7M (6-bit / 6-bit + Dithering) X:0.315; Y:0.330
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
50% 70% 52%
DCI-P3 Coverage Rec.2020 Coverage Remarks
52% 37% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.33 (Typ.)(9 points)



TIANMA TM070RDH10-11 Electronics Features

Frame Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)
Time Controller (T-CON) : Embedded T-CON





TIANMA TM070RDH10-11 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
10/55/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL) 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) -
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features : Position Type Interface
- FPC Parallel RGB (1 ch, 6/8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
    1 pcs 0.5 mm 50 pins DRGB-50P1C8B-115A





TIANMA TM070RDH10-11 Application Features

Basic Information : Brand Model Type Model Alias
  TM070RDH10-11 a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  -20 ~ 70 °C -30 ~ 80 °C -
Designed For :




Specific Features :





Remarks : 80.15mm length FPC

TIANMA TM070RDH10-11 Mechanical Features

Panel Size : 7.0 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
800(RGB)×480, WVGA RGB Vertical Stripe 0.0642×0.1790 mm 0.1926×0.1790 mm [134PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
154.08×85.92 mm 157.08×89.39 mm 164.9×100 mm 5.7±0.3 mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:9 (W : H) Landscape type
Fixation : Without
Other Features : Panel Cover Weight Surface
- 160g (Typ.) Antiglare
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY 0 Back to Top

TIANMA TM070RDH10-11 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
350 cd/m² (Typ.) TN, Normally White, Transmissive 500:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
70/70/50/70 (Typ.)(CR≥10) 12 o'clock 25 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6371K 262K/16.7M (6-bit / 6-bit + Dithering) X:0.315; Y:0.330
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
50% 70% 52%
DCI-P3 Coverage Rec.2020 Coverage Remarks
52% 37% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.33 (Typ.)(9 points)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY 0 Back to Top

TIANMA TM070RDH10-11 Electronics Features

Frame Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)
Time Controller (T-CON) : Embedded T-CON
  •



TIANMA TM070RDH10-11 Packing Features

Package Carton : Amount Weight Carton Size
50 pcs / box 12.26±0.62 Kgs 530×350×250 mm (L×W×H)
  •
  •
  •
  •
  •

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

  •
  • TM070RDH10-11 TIANMA 7.0" 8000(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY 2
  •



































TIANMA TM070RDH10-11 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
10/55/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL) 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) -
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features : Position Type Interface
- FPC Parallel RGB (1 ch, 6/8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
    1 pcs 0.5 mm 50 pins DRGB-50P1C8B-115A


TIANMA TM070RDH10-11 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type Array 3S8P 20K(Typ.) -
WLED Electrical : Current Input Voltage Input Consumption
160/200mA (Typ./Max.) 9.6/10.8V (Typ./Max.) 1.54/2.16W (Typ./Max.)
Interface Features : Position Type WLED Driver
- Included in panel signal interface No
