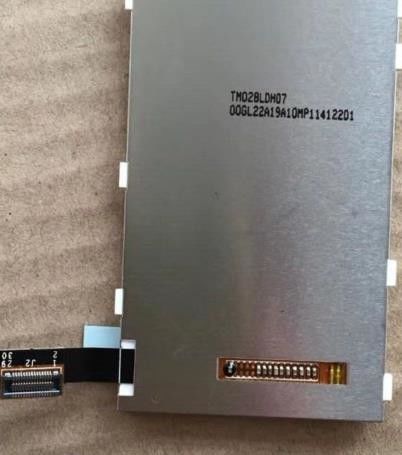

TM028LDH07 TIANMA 2.8" 240(RGB)×400 300 cd/m² INDUSTRIAL LCD DISPLAY

Large Image : TM028LDH07 TIANMA 2.8" 240(RGB)×400 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM028LDH07

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Supply Ability:	3000PCS

Contact Now

TM028LDH07 TIANMA 2.8" 240(RGB)×400 300 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	TM028LDH07	BRAND:	TIANMA
SIZE:	2.8"inch	RESOLUTION:	240(RGB)×400 (WQVGA) 166PPI
Viewing Angle:	70/70/70/60 (Typ.)(CR≥10)	BRIGHTNESS:	300CD/M2
TEMPERATURE RANGE:	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C	Lamp Type:	WLED
SIGNAL LNTERFACE:	LVDS
High Light:	QVGA TIANMA LCD Panel , SVGA TIANMA LCD Panel

TIANMA TM028LDH07 Application Details

Basic Info :	Panel Brand		Panel Model	TM028LDH07
	Diagonal Size	2.8"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	-20 ~ 70 °C	Storage Temp.	-30 ~ 80 °C

TIANMA TM028LDH07 Mechanical Details

Pixel Features :	Pixel Format	240(RGB)×400 [WQVGA]	Dot Pitch	0.051×0.153 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.153×0.153 mm (H×V) [166PPI]
Mechanical Size :	Display Area	36.72×61.2 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	41.9×70.5 mm (H×V)	Outline Depth	2.18±0.15 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Portrait type
Outline Features :	Aspect Ratio	3:5 (H:V)	Shape Style
Other Features :	Weight	TBD	Surface	Clear, Hard coating (3H)

TIANMA TM028LDH07 Optical Details

Basic Information :	Brightness	300 cd/m² (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Viewing Angle	70/70/70/60 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	6 o'clock	Response Time	20 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.319; Wy:0.360	Color Numbers	65K/262K
Color Performance :	Color Temperature	6024K	White Uniformity	1.25 (Typ.)(9 points)
1931 Color Gamut :	NTSC Ratio	56%	sRGB	73% coverage
	Adobe RGB	57% coverage	DCI-P3	58% coverage
	Rec.2020	42% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM028LDH07 Electronics Details

D-IC Detail :	HX8352-B

TIANMA TM028LDH07 Backlight Details

Back-light Features:	Lamp Shape	1 string	Lamp Type	WLED	Life Time	20K(Typ.) (Hours)
Back-light Features:	Replacement	-	Amount	4S1P	Position	Edge light type
Lamp Electrical :	Voltage Input	12.8V (Typ.)		Current Input	20mA (Typ.)
Lamp Electrical :	Consumption	256mW (Typ.)
Interface Features :	Type	Included in signal interface	Position	-	Lamp Driver	No

TIANMA TM028LDH07 Interface Details

Signal Systerm : CPU Logic Voltage -

Signal Electrical : Voltage Input 2.8/1.8V (Typ.)(VCC/IOVCC) Current Input -

Interface Features : Type Connector Position -

Connector Detail : Brand Model Pin Pitch Pins Amount Configuration

molex 501527-0330 0.4 mm 30 pins 1 pcs

TM028LDH07 supports display 240(RGB)×400 (WQVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 36.72(W)×61.2(H) mm, outline size of 41.9(W)×70.5(H)×2.33(D) mm, with surface treament of Clear, Hard coating (3H), net weight of TBD. As a TN, Normally White, Transmissive LCM product, TM028LDH07 can provides 300 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20 (Typ.)(Tr+Td) ms., thus presenting a palette of 65K/262K colors, also with performance of color gamut 50% (NTSC).
