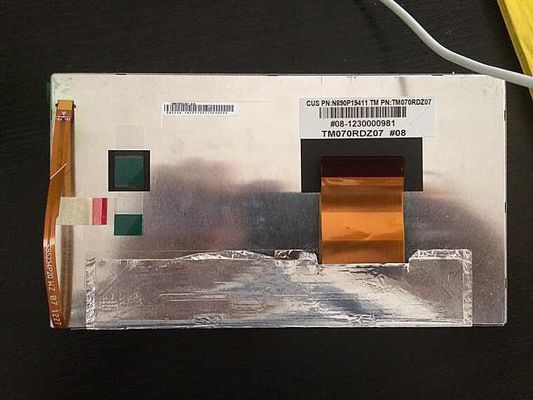

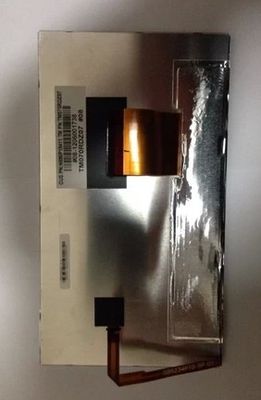

Product Details:
|
| MODEL NUMBER: | TM070RDZ07 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480 (WVGA) 133PPI |
| BRIGHTNESS: | 660 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10 |
| SIGNAL LNTERFACE: | LVDS | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 80 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TM070RDZ07 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 80 °C | -40 ~ 90 °C | - | ||
| Designed For : | ||||
| Specific Features : |
|
|||
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0655×0.1715 mm | 0.1965×0.1715 mm [133PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 157.2×82.32 mm | 160.2×85.32 mm | 167×93 mm | 5.4/6.0 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 17:9 (W : H) | Landscape type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 117g | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 660 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/60/70 (Typ.)(CR≥10) | 12 o'clock | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7470K | 262K (6-bit) | X:0.300; Y:0.313 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 92% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Power Consumption : | 4.9/5.19W (Typ./Max.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Time Controller (T-CON) : | Need external T-CON |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 3.5/28.0/0.25/0.25mA (IDD1/IDD2/IGG/IEE) | 3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) | 0.3/0.45W (Typ./Max.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDD1; 0.7VDD1≤VIH≤VDD1 | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3 strings | 5S3P | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 100/150mA (Typ./Max.) | 15.35V (Typ.) | 4.47/4.6/4.74W (Min./Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | FPC | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 10 pins | BLE-10PINS-AAANNNNCC | |||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 80 pcs / box | 12.52 Kgs | 530×355×250 mm (L×W×H) |
