Product Details:
|

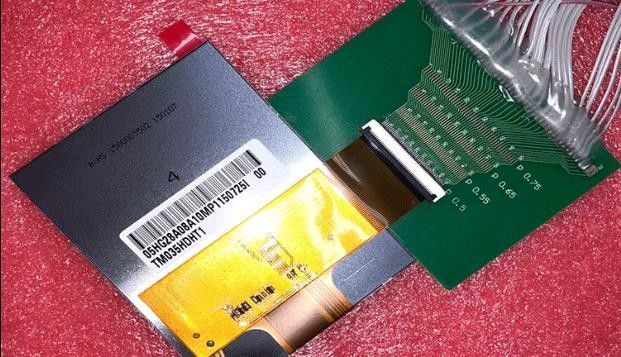

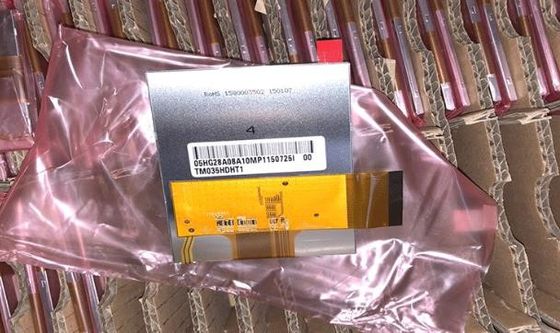

| MODEL NUMBER: | TM035HDHT1 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.5"inch | RESOLUTION: | 240(RGB)×320 [QVGA] 113PPI |
| BRIGHTNESS: | 100CD/M2 | Viewing Angle: | 40/45/55/40 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | TM035HDHT1 | |
|---|---|---|---|---|
| Diagonal Size | 3.5" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 60 °C | Storage Temp. | -30 ~ 70 °C |
| RoHS State | Vibration Rating | - | ||
| Specific Features : |
|
|||
| Remarks : | R-EVT; 2 in 1 FPC; Left side (17.0mm length) | |||
| Pixel Features : | Pixel Format | 240(RGB)×320 [QVGA] | Dot Pitch | 0.0745×0.2235 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2235×0.2235 mm (H×V) [113PPI] | |
| Mechanical Size : | Display Area | 53.64×71.52 mm (H×V) | Bezel Area | 56.64×74.52 mm (H×V) |
| Outline Dim. | 64×85 mm (H×V) | Outline Depth | 2.93±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 3:4 (H:V) | Shape Style | ||
| Other Features : | Weight | 33.5g | Surface | Hard coating |
| Basic Information : | Brightness | 100 cd/m² (Typ.) | Contrast Ratio | 150:1 (Typ.) (Transmissive) 2.5:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 40/45/55/40 (Typ.)(CR≥10) | Optical Mode | ECB, Normally White, Transflective | |
| Viewing Direction | 6 o'clock | Response Time | 35 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.293; Wy:0.307 | Color Numbers | 262K (6-bit) |
| Color Temperature | 8110K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 35% | sRGB | 48% coverage |
| Adobe RGB | 36% coverage | DCI-P3 | 36% coverage | |
| Rec.2020 | 26% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| 3D Type | - | Reflectance | 5.5% (Typ.) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| D-IC Detail : | Built-in ILI9341 |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 20K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 19.2V (Typ.) | Current Input | 20mA (Typ.) | ||
| Consumption | 384mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) + SPI | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 2.8/15/-10V (Typ.)(VCC/VGH/VGL) | Current Input | - | ||

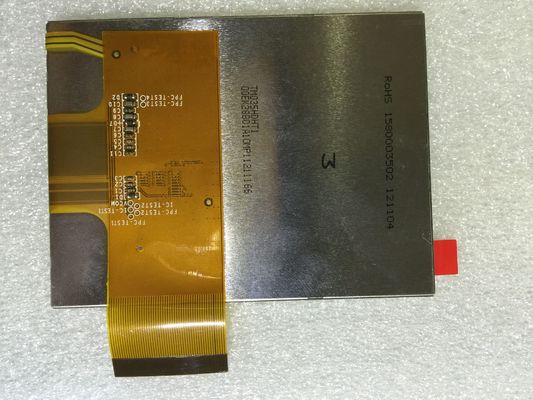

| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||

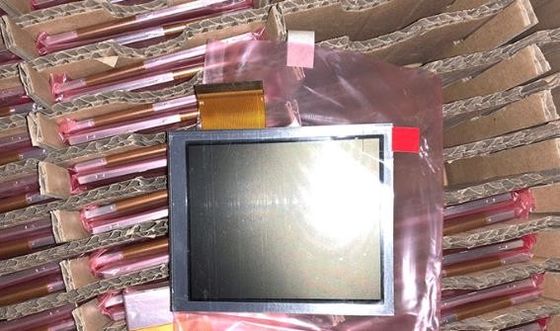

| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 112 pcs / box | TBD | 516×336×226 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
