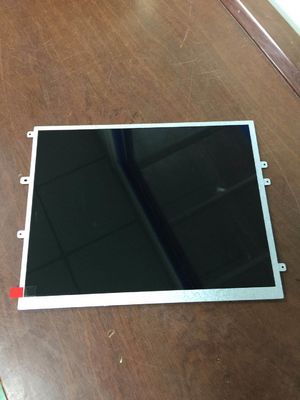

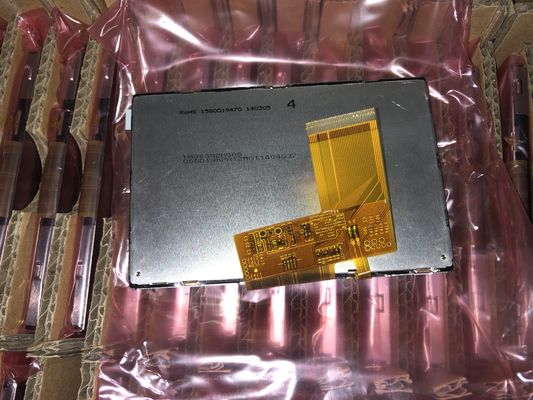

Product Details:
|
| MODEL NUMBER: | TM084SDHG01-00 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 8.4INCH | RESOLUTION: | 800(RGB)×600 (SVGA) 119PPI |
| BRIGHTNESS: | 250 Cd/m² (Typ.) | Lamp Type: | WLED |
| SIGNAL LNTERFACE: | LVDS | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM084SDHG01-00 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Screen Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 170.4×127.8 mm | 173.8×131.2 mm | 203×142.5 mm | 5.7±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| TBD | - | Antiglare | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/60/70 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.310; Y:0.330 | |
| White Uniformity : | 1.33 (Typ.)(9 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | 9S3P | Array | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| E&T | 3808K-F04N-02R | 1 pcs | 4 pins | 1.25 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0±0.5V | TBD | TBD | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | TBD | TBD | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6/8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STARCONN | 107A20-0021RA-G3-R | 1 pcs | 20 pins | 1.0 mm | LVDS-20P1C8B-140A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 203(W)×142.5(H)×6.2(D) mm, viewing area size of 173.8(W)×131.2(H) mm, with surface treament of Antiglare, net weight of TBD. As a TN, Normally White, Transmissive LCM product, TM084SDHG01-00 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 9S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TM084SDHG01-00 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
