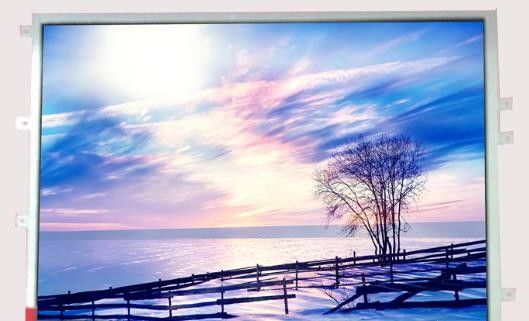

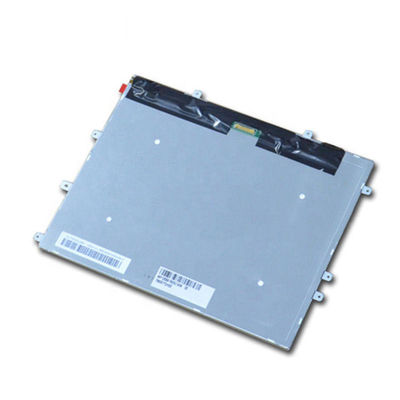

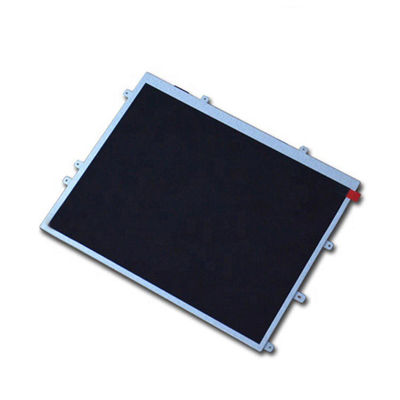

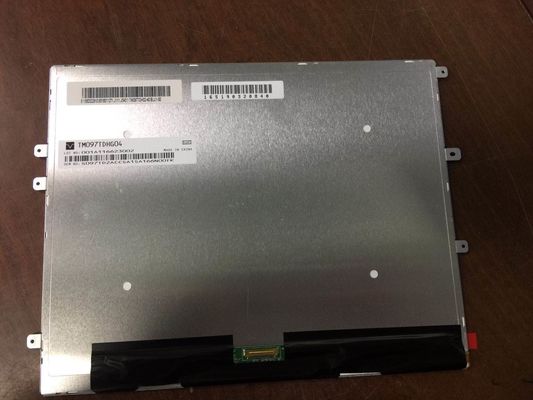

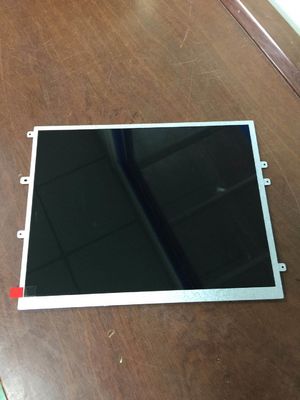

Product Details:
|
| MODEL NUMBER: | TM097TDHG04 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 9.7INCH | RESOLUTION: | 1024(RGB)×768 [XGA] 132PPI |
| BRIGHTNESS: | 350 Cd/m² (Typ.) | Lamp Type: | WLED |
| SIGNAL LNTERFACE: | LVDS | Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | TM097TDHG04 | |
|---|---|---|---|---|
| Diagonal Size | 9.7" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - | ||
| Specific Features : | ||||
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.064×0.192 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.192×0.192 mm (H×V) [132PPI] | |
| Mechanical Size : | Display Area | 196.608×147.456 mm (H×V) | Bezel Area | 200.91×152.27 mm (H×V) |
| Outline Dim. | 210.21×166.3 mm (H×V) | Outline Depth | 3.28/5.85 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (6 pcs) on left, right slugs | |||
| Other Features : | Weight | 200g (Typ.) | Surface | Clear |
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 20 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Typ.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 71% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 3.2W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Life Time | 30K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S6P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 19.2V (Typ.) | Current Input | 20mA (Typ.) | ||
| Consumption | 2.3W (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 271mA (Typ.) | ||
| Consumption | 894.3mW (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20474-030E-11 | 0.4 mm | 30 pins | 1 pcs | ||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 60 pcs / box | 19.27 Kgs | 565×483×312 mm |
