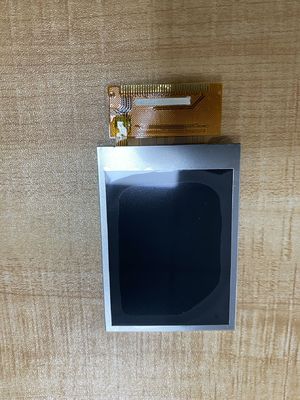

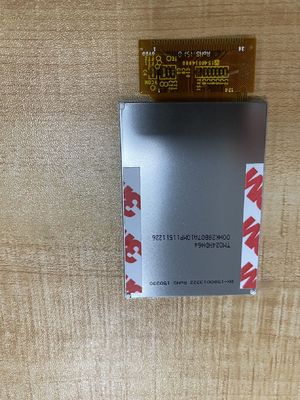

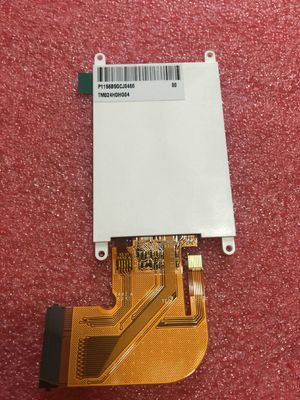

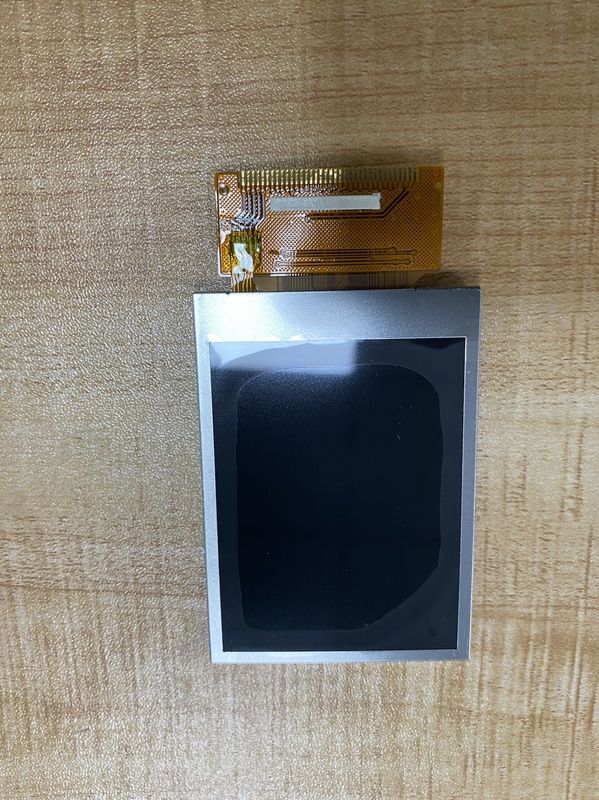

Product Details:
|
| MODEL NUMBER: | TM024HDH36 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 2.4 Inch | RESOLUTION: | 240(RGB)×320, QVGA, 166PPI |
| BRIGHTNESS: | 220 Cd/m² (Typ. | Lamp Type: | WLED |
| SIGNAL LNTERFACE: | LVDS | Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand | Model | TM024HDH36 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 2.4" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | - | ||
| Typical Features : |
|
|||
| Remarks : | CPU 8/9/16/18 bits; 3 in 1 FPC; Down side FPC (13.2mm length) | |||
| Pixel Features : | Resolution | 240(RGB)×320, QVGA | Dot Pitch(mm) | 0.051×0.153 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.153×0.153 (H×V) [166PPI] | |
| Mechanical Size : | Active Area(mm) | 36.72(H) × 48.96(V) | Bezel Area(mm) | 37.72(H) × 49.96(V) |
| Outline Dim.(mm) | 42.72(H) × 60.26(V) | Depth(mm) | 2.55±0.1 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 3:4 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 11.8g | Treatment | Clear, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 220 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 20 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.289; Y:0.315 | Display Colors | 262K |
| Color Temperature | 8213K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 75% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 56% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | Built-in HX8347-G |
| Signal Electrical : | Voltage Supply | (1.8/2.8)/2.8V (Typ.)(VDD/VCI) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Consumption | 21.636mW (Typ.) | |||||
| Signal Type : | CPU | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 39 pins | 0.7 mm | ||||
| Backlight Features: | Shape | Parallel | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1S4P | Life Time | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 3.2V (Typ.) | Current Supply | 15mA (Typ.) | ||
| Consumption | 192mW (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 546 pcs / box | 12.95 Kgs | 544×365×250 mm (L×W×H) |
