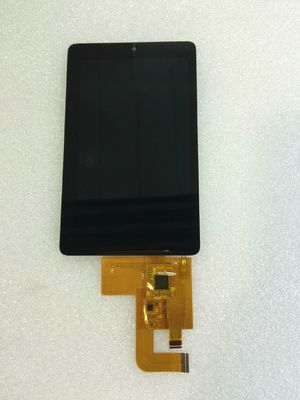

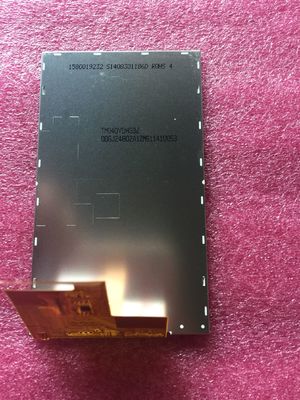

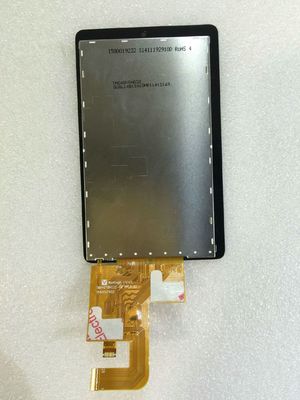

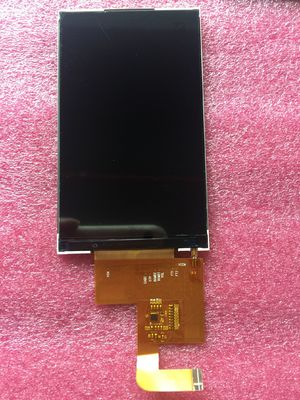

Product Details:
|
| MODEL NUMBER: | TM040YDHG32 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 4.0"inch | RESOLUTION: | 480(RGB)×800, WVGA, 235PPI |
| BRIGHTNESS: | 550CD/M2 | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand | Model | TM040YDHG32 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 4.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| Pixel Features : | Resolution | 480(RGB)×800, WVGA | Dot Pitch(mm) | 0.036×0.108 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.108×0.108 (H×V) [235PPI] | |
| Mechanical Size : | Active Area(mm) | 51.84(H) × 86.4(V) | Bezel Area(mm) | 52.84(H) × 87.4(V) |
| Outline Dim.(mm) | 56.34(H) × 95.7(V) | Depth(mm) | 1.83±0.1 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 3:5 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 22.6g (Typ.) | Treatment | Hard coating |
| Basic Information : | Luminance(cd/m²) | 550 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | SFT, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 70% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | Built-in HX8369-A01 |
| Signal Electrical : | Voltage Supply | (1.8/2.8)/2.8V (Typ.)(IOVCC/VDD) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Signal Type : | MIPI (2 data lanes) | Signal Voltage | - | |||

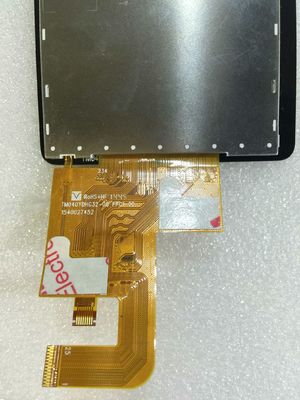

| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 25 pins | 0.3 mm | ||||
Q1: What's the qualitLCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
