TM084SDHG02 TIANMA 8.4 inch 800(RGB)×600 330 cd/m² INDUSTRIAL LCD DISPLAY

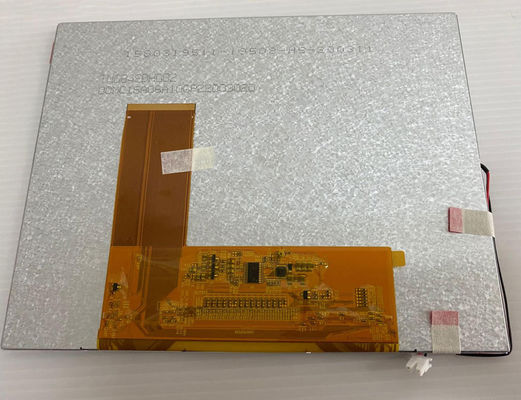

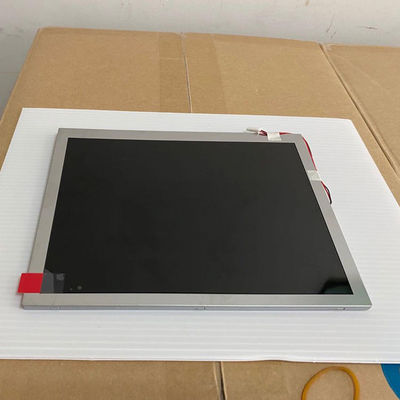

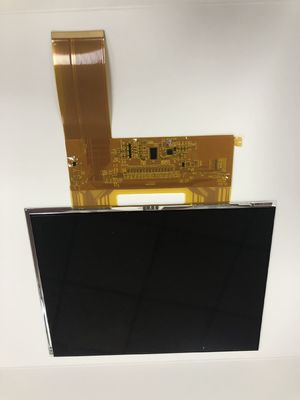

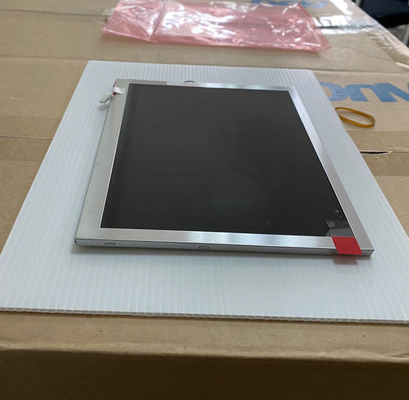

Large Image : TM084SDHG02 TIANMA 8.4 inch 800(RGB)×600 330 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM084SDHG02

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	3000PCS

Contact Now

TM084SDHG02 TIANMA 8.4 inch 800(RGB)×600 330 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	TM084SDHG02	BRAND:	TIANMA
SIZE:	8.4INCH	RESOLUTION:	800(RGB)×600 [SVGA] 119PPI
BRIGHTNESS:	330 Cd/m² (Typ.)	Viewing Angle:	70/70/60/70 (Typ.)(CR≥10
Lamp Type:	WLED	SIGNAL LNTERFACE:	LVDS
TEMPERATURE RANGE:	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
Highlight:	WLED Backlight Tianma TFT , WQVGA TIANMA LCD Panel

TIANMA TM084SDHG02 Application Details

Basic Detail :	Manufacturer		Model Name	TM084SDHG02
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	8.4 inch	Designed For
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C

TIANMA TM084SDHG02 Optical Details

Basic Information :	Luminance	330 cd/m² (Typ.)	Contrast Ratio	500 : 1 (Typ.) (Transmissive)
	Good View at	12 o'clock	Response Speed	20 (Typ.)(Tr+Td) (ms)
	Viewing Angle	70/70/60/70 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.300; Wy:0.310	Support Color	262K/16.7M (6-bit / 6-bit + Dithering)
Color Performance :	Color Temperature	7525K	White Uniformity	1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	52%	sRGB	72% coverage
	Adobe RGB	55% coverage	DCI-P3	54% coverage
	Rec.2020	39% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM084SDHG02 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)×600 [SVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.071×0.213 mm	Pixel Pitch(W×H)	0.213×0.213 mm [119PPI]
Physical Size :	Active Viewing	170.4(W)×127.8(H) mm	Overall Dim.	189.75(W)×149.4(H) mm
Physical Size :	Bezel Opening	173.0(W)×130.8(H) mm	Overall Depth	4.8 (Typ.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Fixation :	Without
Other Detail :	Mass	245g (Typ.)	Surface	Antiglare

TIANMA TM084SDHG02 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Driver IC :	Built-in NT51008B + NT52002
Time Controller (T-CON) :	Embedded T-CON

TIANMA TM084SDHG02 Interface Details

Signal Electrical :	Input Current	TBD		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	660mW (Typ.)	Signal Interface	Parallel RGB (1 ch, 6/8-bit)
Logic Voltage for Signals :	0≤VIL≤0.3VCC; 3.0V≤VIH≤3.6V
Interface Features :	Position	-	Physical Type	FPC
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :			1 pcs	0.5 mm	60 pins

TIANMA TM084SDHG02 Lightting Details

Lamp Features: Lamp Shape Array Lamp Type WLED Position Edge light type

Exchange - Amount 3S7P Life 30K(Typ.) (Hours)

Lamp Electrical : Input Current 180/225mA (Typ./Max.) Input Voltage 9.6V (Typ.)

Consumption 1.73W (Typ.)

Interface Features : Position - Physical Type Connector

Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment

JST BHSR-02VS-1 1 pcs 3.5 mm 2 pins BLE-2PINS-AC

Backlight Driver : No

which was released out on 11 25 2015, TM084SDHG02 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 189.75(W)×149.4(H) mm, viewing area size of 173.0(W)×130.8(H) mm, with surface treament of Antiglare, net weight of 245g (Typ.). As a TN, Normally White, Transmissive LCM product, TM084SDHG02 can provides 330 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC).
