Product Details:
|
| Diagonal Size: | 4.0 Inch | Luminance: | 380 Cd/m² (Typ.) |
|---|---|---|---|
| Pixel Format: | 600(RGB)×800 [SVGA] 250PPI | Outline Dim.: | 65.5(H)×90(V) Mm |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down | Light Source: | WLED |
| Touch Panel: | Without | View Direction: | Symmetry |
| Operating Temperature: | -20 ~ 60 °C | Storage Temperature: | -30 ~ 70 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||

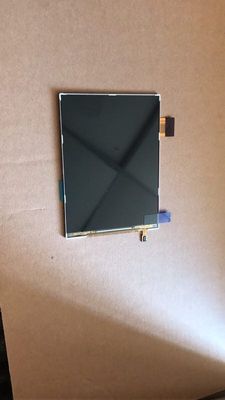

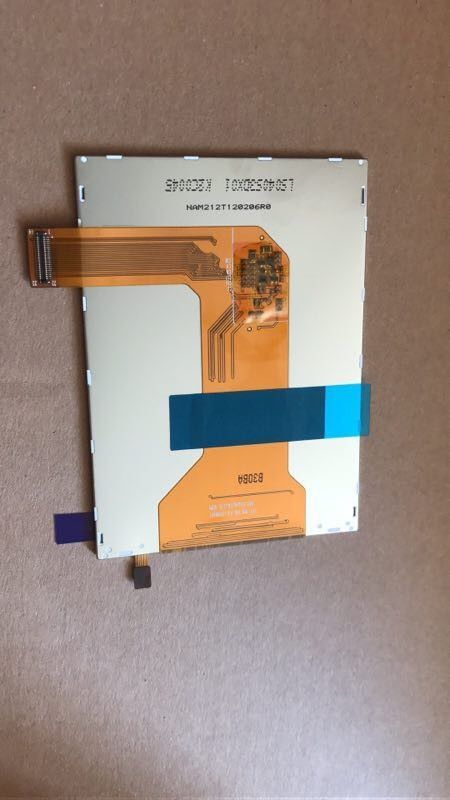

| Basic Detail : | Manufacturer | SHARP | Model Name | LS040S3DX01 |
|---|---|---|---|---|
| Panel Type | CG-Silicon , LCM | Another Name | - | |
| Panel Size | 4.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 380 cd/m² (Typ.) | Contrast Ratio | 750 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 15/25 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.330 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7203K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 86% | sRGB | 100% coverage |
| Adobe RGB | 81% coverage | DCI-P3 | 88% coverage | |
| Rec.2020 | 64% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Input Current | 3.4/48.0mA (Typ.)(ICCI/IDD3) | Input Voltage | 1.8/2.8V (Typ.)(VCCI/VDD3) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Panasonic | AXT644124 | 1 pcs | 0.4 mm | 44 pins | ||
| Pixel Features : | Number of Pixel | 600(RGB)×800 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0253125×0.0759375 mm | Pixel Pitch(W×H) | 0.0759375×0.0759375 mm [250PPI] | |
| Physical Size : | Active Viewing | 60.75(W)×81(H) mm | Overall Dim. | 65.5(W)×90(H) mm |
| Bezel Opening | - | Overall Depth | 1.7 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 3:4 | Shape Style | ||
| Other Detail : | Mass | 24.4g (Typ.) | Surface | - |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | Built-in D54E6PA8963A |
| Lamp Features: | Lamp Shape | Parallel | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1S8P | Life | - | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 3.0±0.2V | ||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||

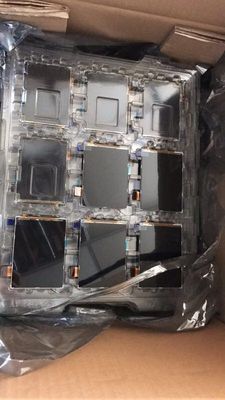

| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 180 pcs / box | 450×285×350 mm | 9.23 Kgs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
