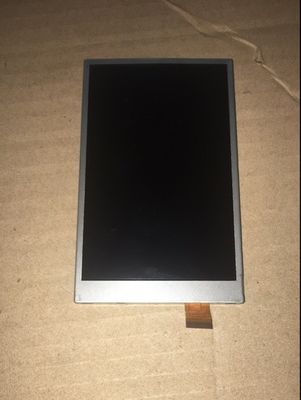

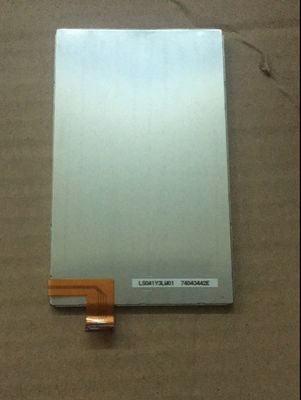

Product Details:
|
| Size: | 4.1 Inch | Model: | LS041Y3LW01 |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480 [WVGA] 225PPI | Luminance: | 385 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥5) Left / Right / Up / Down | View Direction: | Symmetry |
| Outline Dim.: | 106.6(H)×64.2(V) Mm | Power Supply: | 2.75/1.8V (Typ.)(VDD/VDD1) |
| Light Source: | WLED | Environment: | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
| Basic Info : | Panel Brand | SHARP | Panel Model | LS041Y3LW01 |
|---|---|---|---|---|
| Diagonal Size | 4.1" | Application | ||
| Panel Type | CG-Silicon , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | Vibration Rating | - | ||
| Remarks : | 2 in 1 FPC | |||
| Basic Information : | Brightness | 385 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Optical Mode | Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 22/12 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.314; Wy:0.334 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6394K | White Uniformity | - |
| Signal Systerm : | FlatLink3G | Logic Voltage | 0≤VIL≤0.3VDD1; 0.7VDD1≤VIH≤VDD1 | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 2.75/1.8V (Typ.)(VDD/VDD1) | Current Input | 28/12mA (Typ.)(IDD/IDD1) | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.3 mm | 31 pins | 1 pcs | ||||
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0375×0.1125 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1125×0.1125 mm (H×V) [225PPI] | |
| Mechanical Size : | Display Area | 90×54 mm (H×V) | Bezel Area | - |
| Outline Dim. | 106.6×64.2 mm (H×V) | Outline Depth | 3.1 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 41.0g (Typ.) | Surface | - |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 28.0/31.5V (Typ./Max.) | Current Input | 20/35mA (Typ./Max.) | ||
| Consumption | 0.58/1.10W (Typ./Max.) | |||||
| Interface Features : | Type | FPC | Position | - | Lamp Driver | No |
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 100 pcs / box | 8.2 Kgs | 575×360×225 mm |
LS041Y3LW01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 90(W)×54(H) mm, outline size of 106.6(W)×64.2(H) mm, net weight of 41.0g (Typ.). As a Normally Black, Transmissive LCM product, LS041Y3LW01 can provides 385 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 22/12 (Typ.)
