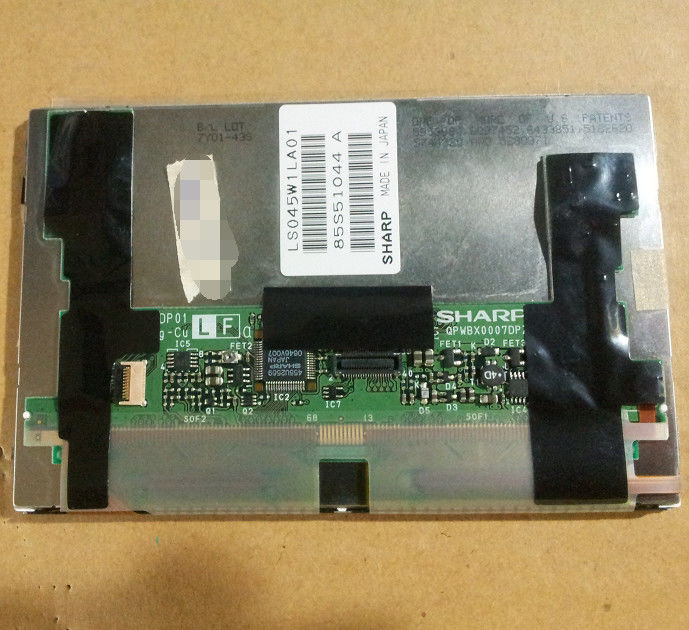

Product Details:
|
| Model Name: | LS045W1LA01 | Manufacturer: | Sharp |
|---|---|---|---|
| Size: | 4.5 Inch | Screen Type: | LCM, CG-Silicon |
| Pixel Number: | 1024(RGB)×600 (WSVGA) | Luminance: | 200 Cd/m² (Typ.) |
| Work Mode: | Normally Black, Transmissive | Backlight: | WLED |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS045W1LA01 | CG-Silicon , LCM | - | |
| Application : |
|
|||
| Screen Size : | 4.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×600, WSVGA | RGB Vertical Stripe | - | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | - | Landscape type | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | Normally Black, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | - | - | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 262K (6-bit) | - |
LS045W1LA01 supports display 1024(RGB)×600 (WSVGA), whose pixels are arranged in RGB Vertical Stripe.. As a Normally Black, Transmissive LCM product, LS045W1LA01 can provides 200 cd/m² display brightness 300:1 transimissive contrast ratio . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.
