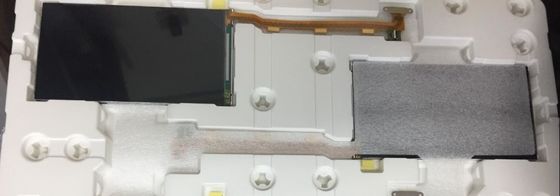

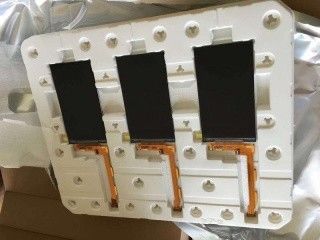

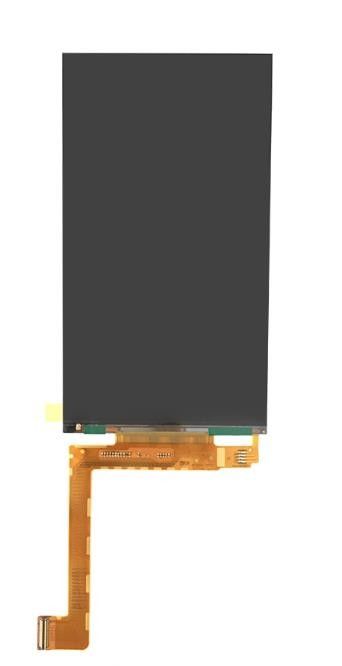

4.7inch Sharp CG Silicon 470cd/m² TFT LCD Display LS047T1SC02

 LS047T1SC02 supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 473 PPI. As for mechanical detail, it features active area of 57.996(W)×103.104(H) mm, outline size of 60.4(W)×112.2(H)×1.48(D) mm, net weight of 19.0g. As a New Mode2, Normally Black, Transmissive LCM product, LS047T1SC02 can provides 470 cd/m² display brightness 1000:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LS047T1SC02 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 5.0/-5.0/1.8V (Typ.)
