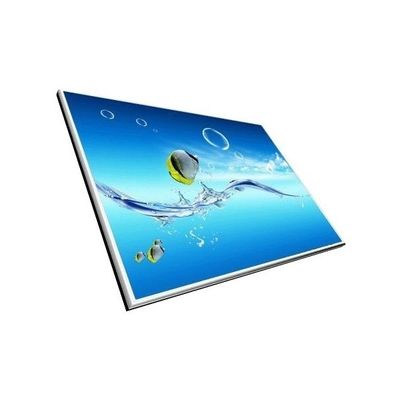

Product Details:
|
| MODEL NUMBER: | TL139VDXP01-01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 13.9 Inch | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10 |
| RESOLUTION: | 1920(RGB)×1080 (FHD) 158PPI | BRIGHTNESS: | 400 Cd/m² (Typ.) |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
| High Light: | WLED Backlight Tianma TFT,WQVGA TIANMA LCD Panel |
||
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0534×0.1602 mm | Pixel Pitch(W×H) | 0.1602×0.1602 mm [158PPI] | |
| Physical Size : | Active Viewing | 307.584(W)×173.016(H) mm | Overall Dim. | 312.184(W)×183.116(H) mm |
| Bezel Opening | - | Overall Depth | 2.3±0.1 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 199±19g | Surface | Antiglare |
| Basic Detail : | Manufacturer | Model Name | TL139VDXP01-01 | |
|---|---|---|---|---|
| Panel Type | LTPS TFT-LCD , LCM | Another Name | - | |
| Panel Size | 13.9 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS | ||
| Features : |
|
|||
| Remarks : | eDP1.3; for Asus ZenBook S13 UX392 Laptop | |||
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 15/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.50 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 100% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | COG Suggest CRX2000 |
| Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 435/478mW (Typ./Max.) | Signal Interface | eDP (2 Lanes) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 20498-026E-41 | 1 pcs | 26 pins | ||||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | - | |
| Lamp Electrical : | Input Current | 16.5/20mA (Typ./Max.) | Input Voltage | |||
| Consumption | 2.67/3.56W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 20 pcs / box | 544×365×250 mm | 9.84 Kgs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
