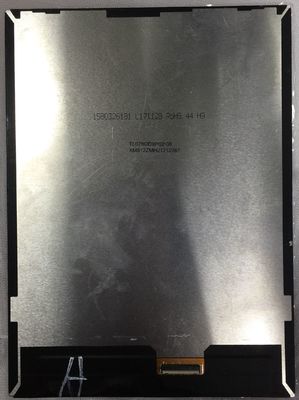

Product Details:
|
| MODEL NUMBER: | TL079QDXP02 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.9INCH | RESOLUTION: | 1536(RGB)×2048, 325PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C | Lamp Type: | WLED |
| SIGNAL LNTERFACE: | LVDS | ||
| Highlight: | WLED Backlight Tianma TFT,WQVGA TIANMA LCD Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TL079QDXP02 | LTPS TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - | ||
| Used For : | ||||
| Specific Features : |
|
|||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 88/88/88/88 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | SFT, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 100% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25 (Max.)(9 points) | ||
| Panel Size : | 7.9" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1536(RGB)×2048 | RGB Vertical Stripe | 0.078×0.078 [325PPI] | 0.026×0.078 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 119.808(H) × 159.744(V) | - | 125.55(H) × 170.95(V) | 3.38 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 3:4 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 73.0 (Typ.) | - | Hard coating (3H) | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Driver IC : | COG Suggest R63319 |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6S4P | 4 strings | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 17.1V (Typ.) | 19/19.5mA (Typ./Max.) | 1.4W (Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.8/5.4/-5.4V (Typ.)(IOVCC/VSP/VSN) | - | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | MIPI (2 ch, 4 data lanes) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| Panasonic | AYF335165 | 0.3 mm | 51 pins | 1 pcs | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 30 pcs / box | - | 544×365×250 mm (L×W×H) |
