TM035HBHT6 TIANMA 3.5 inch 240×320 80 cd/m² INDUSTRIAL LCD DISPLAY

TM035HBHT6 TIANMA 3.5 inch 240×320 80 cd/m² INDUSTRIAL LCD DISPLAY
TM035HBHT6 TIANMA 3.5 inch 240×320 80 cd/m² INDUSTRIAL LCD DISPLAY TM035HBHT6 TIANMA 3.5 inch 240×320 80 cd/m² INDUSTRIAL LCD DISPLAY TM035HBHT6 TIANMA 3.5 inch 240×320 80 cd/m² INDUSTRIAL LCD DISPLAY TM035HBHT6 TIANMA 3.5 inch 240×320 80 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  TM035HBHT6 TIANMA 3.5 inch 240×320 80 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM035HBHT6
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Supply Ability: 5000PCS
Contact Now

TM035HBHT6 TIANMA 3.5 inch 240×320 80 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM035HBHT6 BRAND: TIANMA
SIZE: 3.5 Inch RESOLUTION: 240(RGB)×320 (QVGA) 113PPI
BRIGHTNESS: 80 Cd/m² (Typ.) Lamp Type: WLED
SIGNAL LNTERFACE: LVDS Viewing Angle: 40/45/55/40 (Typ.)(CR≥10
TEMPERATURE RANGE: Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
High Light:

WLED Backlight Tianma TFT

,

WQVGA TIANMA LCD Panel

TIANMA TM035HBHT6 Electronics Details

Reverse Scan :
No
Driver IC :
Built-in ILI9341
Time Controller (T-CON) :
Embedded T-CON



TIANMA TM035HBHT6 Mechanical Details

Pixel Features :
Resolution
240(RGB)×320, QVGA
Dot Pitch(mm)
0.0745×0.2235 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.2235×0.2235 (H×V) [113PPI]
Mechanical Size :
Active Area(mm)
53.64(H) × 71.52(V)
Bezel Area(mm)
-
Outline Dim.(mm)
64(H) × 85(V)
Depth(mm)
4.13±0.3
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
3:4 (H:V)
Orientation
Portrait type
Touch Panel :
Touch Points
1 point
Touch Panel
4-wire Resistive Touch
TP Controller
Without touch controller
Touch Signal
-
Other Spec :
Weight
44.4g
Treatment
Hard coating



TIANMA TM035HBHT6 Application Details

Basic Information :
Brand

Model
TM035HBHT6
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
3.5 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 70 °C
Operating Temp.
-20 ~ 60 °C
RoHS

Vibration
-
Typical Features :




  • WLED Backlight
Remarks :
R-EVT; 3 in 1 FPC; Left side FPC (17.00mm length



TIANMA TM035HBHT6 Interface Detail

Signal Electrical :
Voltage Supply
2.8/15.0/-10.0V (Typ.)(VCC/VGH/VGL)
Current Supply
-
Signal Type :
Parallel RGB (1 ch, 6-bit) + SPI
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


0.5 mm
50 pins
1 pcs



TIANMA TM035HBHT6 Optical Details

Basic Information :
Luminance(cd/m²)
80 (Typ.)
Contrast Ratio
150:1 (Typ.) (Transmissive) 2.5:1 (Typ.) (Reflective)
Viewing Angle
40/45/55/40 (Typ.)(CR≥10)
Display Mode
ECB, Normally White, Transflective
Best View on
6 o'clock
Response(ms)
35 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.301; Wy:0.321
Display Colors
262K (6-bit)
Color Temperature
7272K
White Uniformity
-
1931 Color Gamlt :
NTSC Ratio
37%
sRGB
52% coverage
Adobe RGB
39% coverage
DCI-P3
39% coverage
Rec.2020
28% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
3D Type
-
Reflectance
5.5% (Typ.)



TIANMA TM035HBHT6 Backlight Details

Backlight Features :
Type
WLED
Quantity
6S1P
Position
Edge light type
Replacement
-
Shape
1 string
Life Time
20K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
19.2V (Typ.)
Current Supply
20mA (Typ.)
Consumption
384mW (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



TIANMA TM035HBHT6 Packing Details

Package Box : Quantity Weight Box Size
112 pcs / box - 516×336×226 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

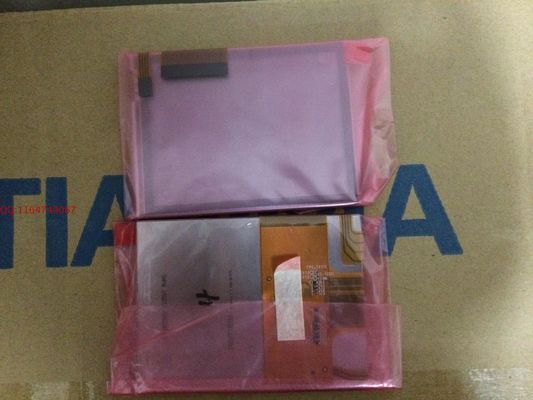

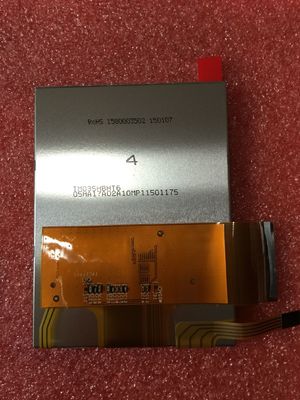

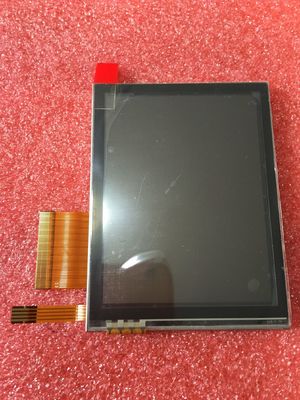

TM035HBHT6 TIANMA 3.5 inch 240×320 80 cd/m² INDUSTRIAL LCD DISPLAY 1TM035HBHT6 TIANMA 3.5 inch 240×320 80 cd/m² INDUSTRIAL LCD DISPLAY 2
